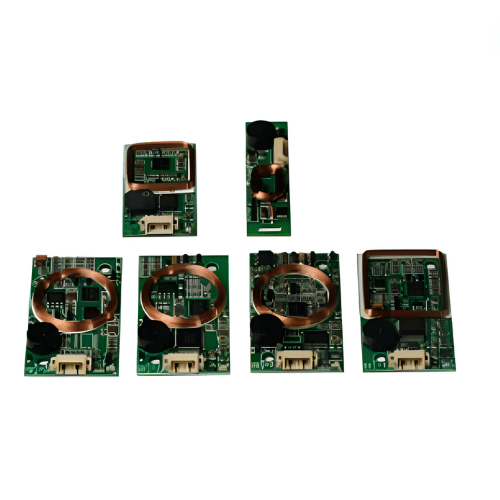

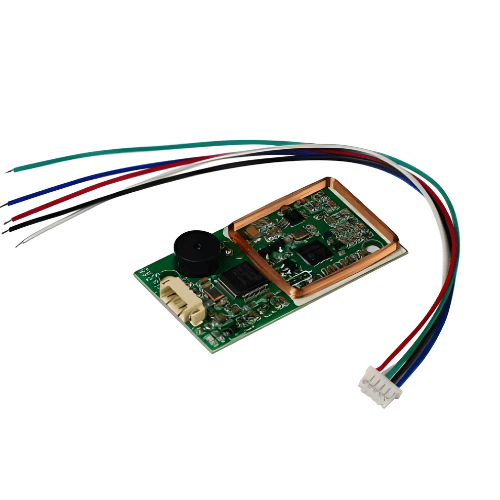

13.56 MHz HF RFID Access Control Reader Module – Specimen Track

Efficient 13.56 MHz RFID access control reader with ISO protocols, UART and Wiegand interfaces, and wide operating range.

SKU: STRHMOD-211 Category:

Overview

This HF RFID Access Control Reader Module has frequency 13.56 MHz, read distance 1.97 in to 3.94 in, and -4 oF to 158 oF working temperature.



Technical Specifications

Frequency 13.56 MHz
Protocol ISO 14443 A, ISO 11784, ISO 11785
Interface Wiegand, UART
Working Voltage DC 5 V (12 V optional)
Read Distance 1.97 in to 3.94 in (5 cm to 10 cm)
Working Current Max 40 mA
Working Temperature -4 oF to 158 oF (-20 oC to 70 oC)

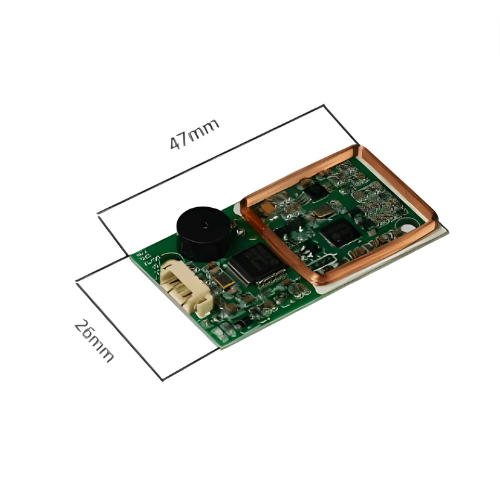

Size 1.85 in x 1.02 in x 0.20 in (47 mm x 26 mm x 5 mm)
