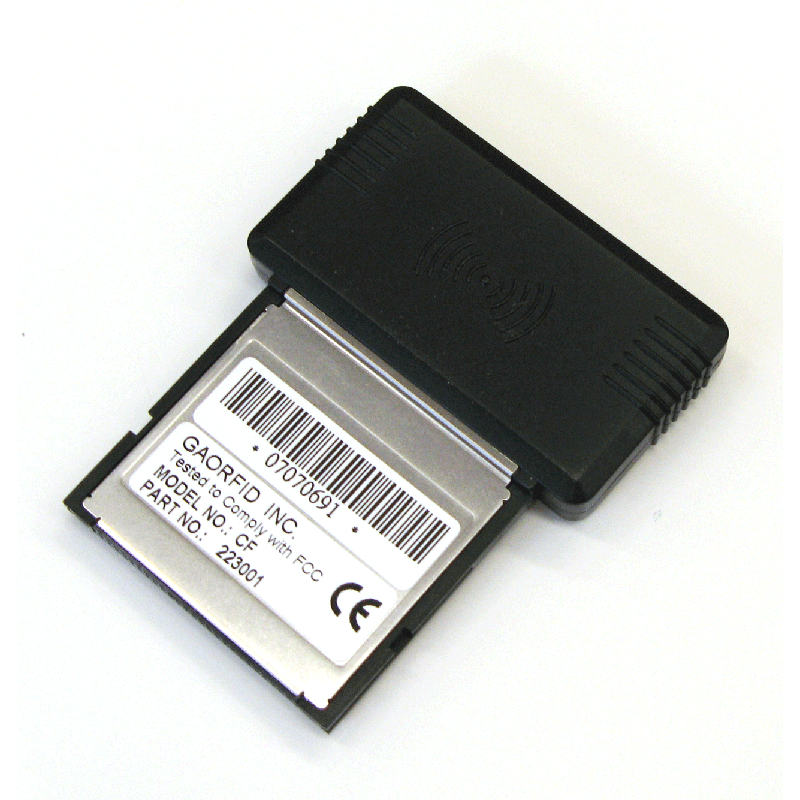

Overview
Logistics, Security ID Verification, Time and Attendance
Technical Specifications
| Power requirements | CF connector from PDA |
| Housing | CF Card Type 1 |
| Baud rate | 19200 bps 8,N,1 No Flow Control |
| Data Structure | STX, DATA, CR, LF |
| Frequency | 125 KHz. (LF-Low Frequency), ASK |
| Read Distance | 2 ~ 5 cm (1 to 2 in.) |
| Transponders Supported | 64 bits Manchester coding |
| Technical Certificates | CE, FCC |
| Dimensions | L 69.0 mm X W 55.0 mm X H 9.6 mm with cover |
| Weight | ~ 25 g. |
Operating Specifications – 125 KHz. Low Frequency (LF) RFID Reader
| Operating Temperature | -10 °C ~ 60 °C |
| Storage Temperature | -20 °C ~ 65 °C |
| Humidity | 10~90% relative |
Transponder Requirements – 125 KHz. Low Frequency (LF) RFID Reader
| Broadcast Power | less than 5 mA |
| Bandwidth | 119 KHz. ~ 131 KHz. |
| Modulation | ASK |
