Overview

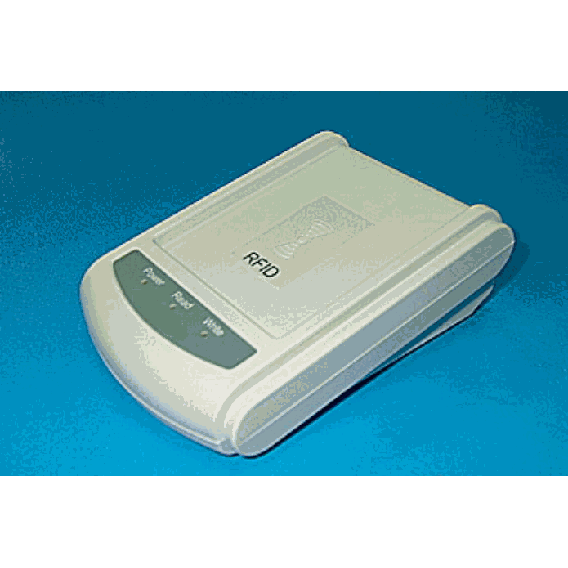

This high and low frequency RFID reader applies dual read technology allowing it to read a wide variety of RFID tags. It reads the unique serial number which can have prefix or suffix. This reader is used for many applications including for access control by scanning a user’s RFID enabled card for system authorization.
This dual frequency RFID reader supports multi-detection and offers a high baud rate from 2400 bps to 19200 bps. It reads a variety of RFID cards compliant with ISO 14443A Mifare MF, Ultralite, DESfire. The compact LF or HF RFID reader communicates with a PC via RS232 interface and is powered by 5 V DC 150 mA adaptor for continuous operation.
Technical Specifications
| Frequency | 125 KHz or 13.56 MHz |
| Power requirements | 5 V DC 150 mA |
| Communications Interface | RS232 |
| Baud rate | 2400 to 19200 bps N, 8, 1 |
| Read Distance | Contact with cradle required |
| Technical Certificates | CE, FCC |
| Dimensions (mm) | L 120 × W 86 × H 42 |
| Weight | 150 g |
| Operating Temperature | -0 °C to 50 °C |
| Storage Temperature | -10 °C to 60 °C |
| Humidity | 10 to 90% relative |
| Multi-Detection | Yes |
| Antenna Compatibility | Built in |
| Antenna Connection | Non required |
| Transponder Compatibility | EM compatible 64 bits, ASK Manchester, ISO 14443 A Mifare MF1 1 K & 4 K, Ultralite, DESfire Read Only |
