Overview

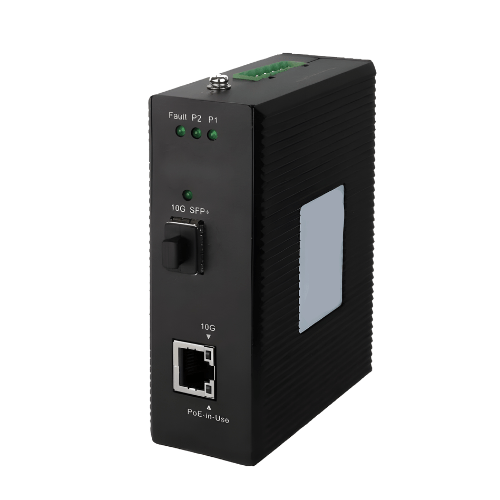

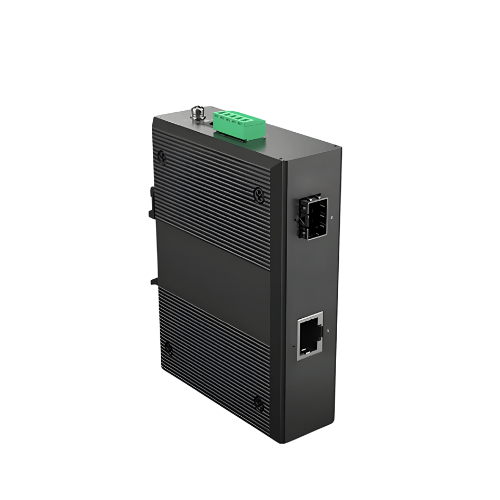

Specimen Track 10G Gigabit Fiber & Media Converter are the smallest industrial-grade 10G Ethernet media converter (from 10000 Base-X SFP+ to 10G or 5G or 2.5G or 1G or 100M Base-T Copper) with 802.3bt Power over Ethernet Plus Plus (PoE++) injector function to deliver up to 90 W of power output and high data transmission speed to PDs (powered devices) installed in a remote area where sufficient and reliable power input is required, providing non-blocking wire-speed performance and great flexibility for 10G Ethernet extension in harsh industrial environment. It is equipped with one 10G or 5G or 2.5G or 1G or 100M Base-T RJ45 copper interface and one 10G Base-X SFP+ fiber optic interface delivered in an IP40 rugged but compact sized strong case with redundant power system (44 V to 57 V DC).
Features
- Single RJ45 interface with IEEE 802.3bt PoE++ injector
- One 10G BASE-X SFP+ slot interface
- Complies with IEEE 802.3bt PoE++ Type-4 PSE
- Supports PoE Power up to 90 W for PoE port
- 44 V to 57 V DC redundant power with reverse polarity protection
Technical Specifications
| Standards | IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3bz 2.5G or 5G BASE-T IEEE 802.3an 10G BASE-T IEEE 802.3ae 10 Gbps Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.3bt 4-pair Power over Ethernet IEEE 802.3at Power over Ethernet Plus PSE IEEE 802.3af Power over Ethernet Plus |
| Flow Control | IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 20 Gbps or non-blocking |
| Network Cables | 10G or 5G or 2.5G or 1G or 100M Base-T:10G – Cat 6A or 7 5G – Cat 6 or 6A or 7 2.5G or 1G – Cat 5e or 6 or 6A or 7 100M – Cat 5 or 5e or 6 or 6A or 7 Cat 5 or 5e or 6 or 6A or 7 UTP cable (max 0.06 mi (100 m)) EIA or TIA-568 100-ohm STP (max 0.06 mi (100 m)) 10G Base-LR or SR or BX: 0.001 in or 0.004 in or 0.002 in or 0.004 in (50 um or 125 um or 62.5 um or 125 um) multi-mode fiber optic cable, up to 0.18 mi (300 m) 0.0003 in or 0.004 in (9 um or 125 um) single-mode fiber optic cable, up to 49.71 mi (80 km) |
| Connector | 1 x 10G or 5G or 2.5G or 1G or 100M Base-T RJ45 interface with IEEE 802.3bt PoE++ injector function |
| Optical Port | 1 x 10G Base-X SFP+ interface |
| PoE Power Output | 802.3bt PoE++: 90 W |
| PoE Power Supply Type | End-span + mid-span |
| Power Pin Assignment | End-span: 1 or 2 (-), 3 or 6 (+);mid-span: 4 or 5 (+), 7 or 8 (-) |
| PoE Power Budget | 90 W at 44 V to 57 V DC input |
| Relative Humidity | 5% to 95% non-condensing |
| MTBF | > 100,000 hrs |
| Input Power | 44 V to 57 V DC (Terminal Block) |
| Power Consumption | System ON without loading: 48 V DC: 4.36 WFull loading with PoE++: 48 V DC: 98 W |
| Power Input Overload | Automatic Resettable |
| Reverse Polarity | Present |
| Casing | Aluminum Case |
| Mounting Options | DIN-Rail and Wall-Mount |
| P1 or P2 | Power Status |
| Fault | Fault Alarm |
| 10G | 10G Ethernet Link Status |
| 10G SFP+ | 10G SFP+ Link Status |
| Operating Temperature | -40 °F to 176 °F (- 40 °C to 80 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Dimensions | 3.03 in x 1.48 in x 4.21 in (77 mm x 37.5 mm x 107mm) |
| Weight | 0.59 lb (270 g) |
