Overview

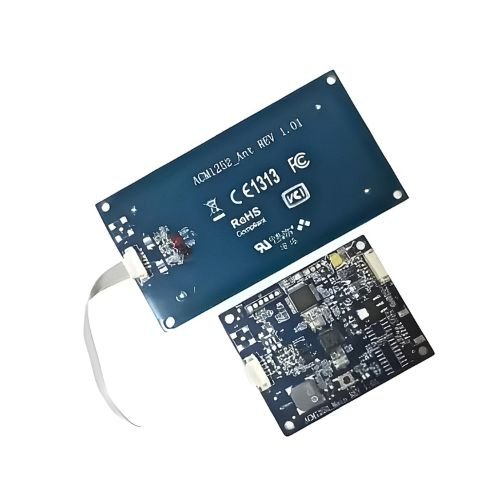

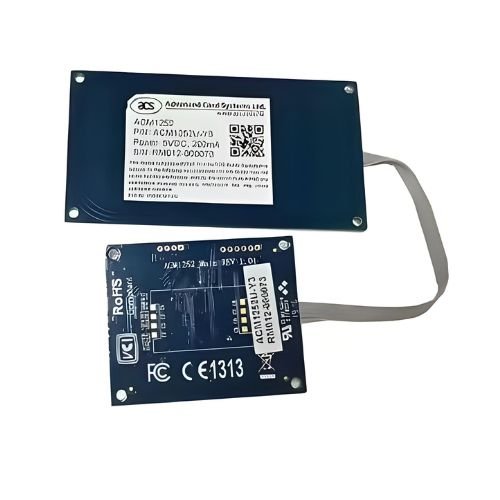

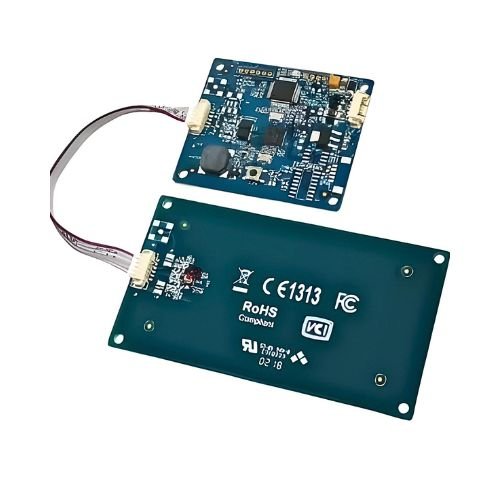

Specimen Track USB NFC Reader Module with Detachable Antenna Board is developed based on the 13.56 MHz contactless technology. This smart card reader module is designed for fast and easy integration into embedded systems. This reader module supports the three NFC modes (card reader or writer, card emulation, and peer-to-peer communication) and supports various cards such as ISO 14443 Type A and B, FeliCa cards, and ISO 18092–compliant NFC tags. It also supports other NFC devices with access speeds of up to 424 Kbps and proximity operating distances of up to 50 mm (depending on tag type used).
Features
- USB 2.0 Interface
- CCID Compliance
- Firmware Upgradeability
- Smart Card Reader with read-write speed up to 424 Kbps
- Reading distance of up to 0.16 ft
- Contactless Interface
- Supports ISO 14443
- Built-in anti-collision feature
- NFC Support
- User-controllable LED
Technical Specifications
| Frequency | 13.56 MHz |
| Protocol | USB CCID |
| Connector Type | Standard Type A |
| Power Source | From USB port |
| Speed | USB Full Speed |
| Cable Length | 1.0 m, Detachable |
| Standard | ISO or IEC 18092 NFC, ISO 14443 Type A and B, MIFARE, FeliCa |
| Protocol | ISO 14443-4 Compliant Cards, TCL ISO 18092, NFC Tags FeliCa |
| Antenna | 3.03 in x 1.94 in (0.25 ft x 0.16 ft) |
| Number of Slots | 1 (Optional) |
| Buzzer | Monotone |
| Dimensions | Main Board: 2.16 in x 1.77 in x 0.20 in (55.0 mm x 45.0 mm x 5.1 mm) Antenna Board: 3.58 in x 1.94 in x 0.20 in (91.0 mm x 49.5 mm x 5.1 mm) |
| Weight | 0.94 oz (26.6 g) |
