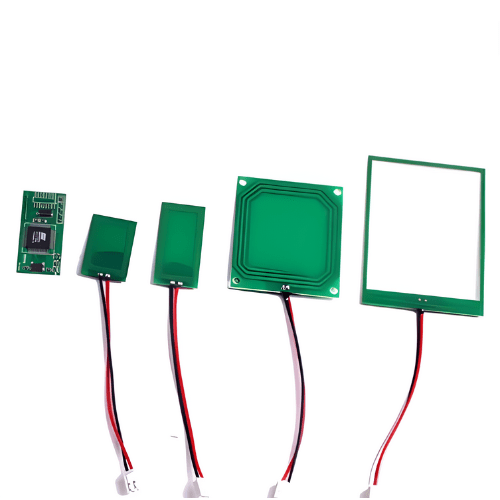

13.56MHz HF RFID Reader Module with MFRC 522 and RS232 - Specimen Track

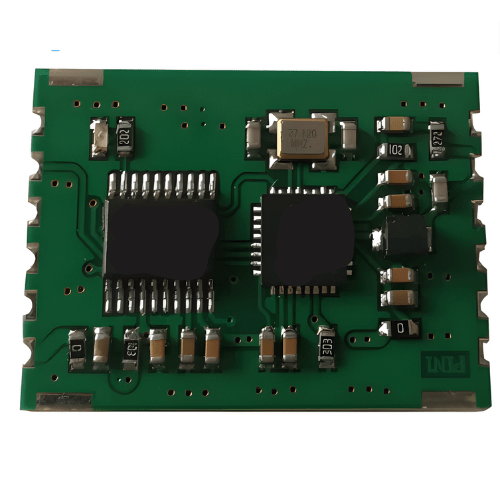

13.56MHz HF RFID Reader Module with MFRC 522 and RS232 - Specimen Track - Image 2

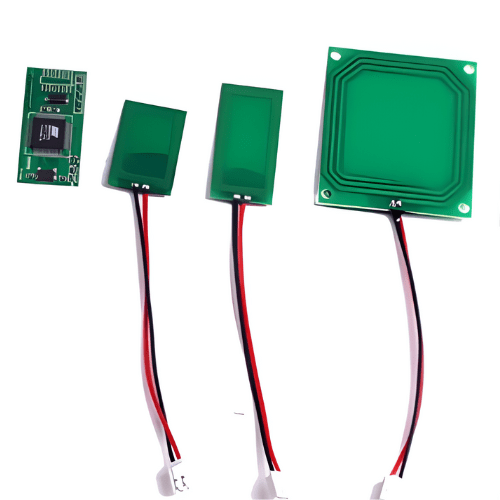

13.56MHz HF RFID Reader Module with MFRC 522 and RS232 - Specimen Track - Image 3

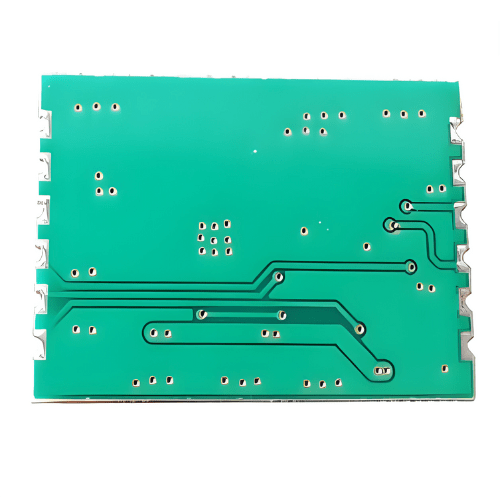

13.56MHz HF RFID Reader Module with MFRC 522 and RS232 - Specimen Track - Image 4

13.56MHz HF RFID Reader Module with MFRC 522 and RS232 – Specimen Track

HF RFID reader module with 13.56MHz frequency. Supports ISO 14443-A, MFRC 522 chip, RS232, and TTL interfaces with a 10 cm read range.

SKU: STRHMOD-220 Category:

Overview

This Entry System HF RFID Reader Module has frequency 13.56 MHz, read distance 0 in to 3.94 in, and 14 oF to 158 oF operating temperature.



Technical Specifications

Frequency13.56 MHz
Read-Write ChipMFRC 522
Baud Rate9600 bits per second
Support StandardISO 14443-A
Power Supply/CurrentDC 3.3 V, < 70 mA
InterfaceRS 232, TTL
Working Distance0 in to 3.94 in (0 cm to 10 cm)
Operating Temperature14 oF to 158 oF (-10 oC to 70 oC)
Storage Temperature-4 oF to 176 oF (-20 oC to 80 oC)
Dimension1.52 in x 0.75 in x 0.35 in (39 mm x 19 mm x 9mm)
