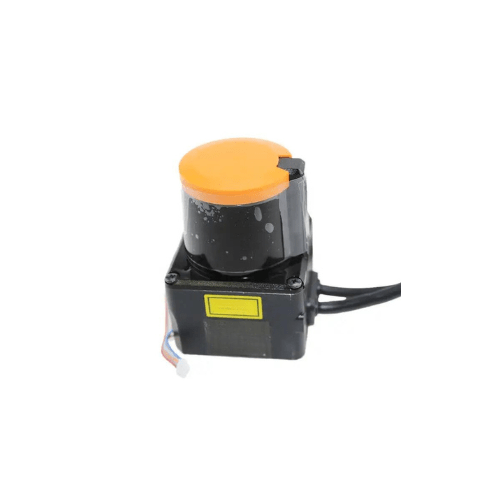

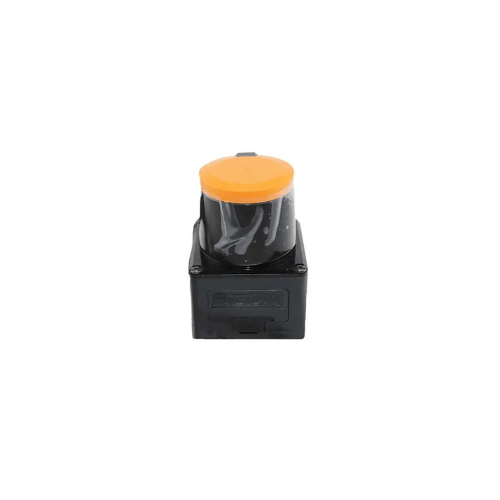

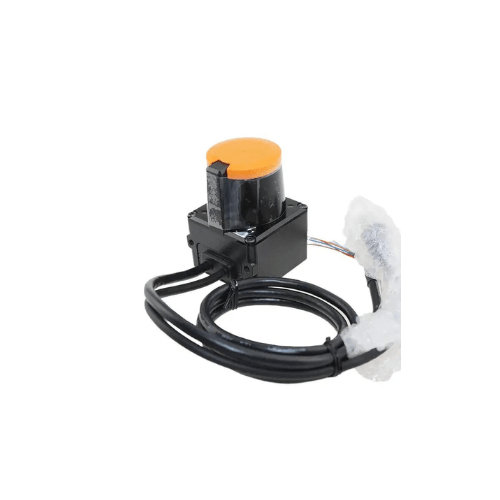

Features
- Smallest, lightest 130g
- 10 m or 20 m detection
- 270° angle
- Fast response 25 msec
- High resolution 0.25°
Technical Specifications
| Supply voltage | DC 12 V or DC 24 V (operation range 10 to 30 V ripple within 10%) |
| Supply current | 150 mA or less (during startup 450 mA is necessary.) |
| Light source | Laser semiconductor (905 nm), Laser class 1(IEC 60825 1 2007) |
| Detection range | 0.06 m to 10 m (white Kent sheet) 0.06 m to 4 m (diffuse reflectance 10% ) Max. detection distance 30 m |
| Accuracy | ±1.58 in (±40 mm) |
| Repeated accuracy | <1.18 in (<30 mm) |
| Scan angle | 270° |
| Scan speed | 25 ms (Motor speed 2400 rpm) |
| Angular resolution | 0.25° and 0.125° |
| Startup time | Within 10 sec (startup time differs if malfunction is detected during start up) |
| Input | IP reset input, photo coupler input (current 4 mA at ON) |
| Output | Synchronous Output, photo coupler open collector output 30 V DC 50 mA MAX. |
| Interface | Ethernet 100 BASE TX |
| LED display | Power supply LED display (Blue) Blinks during start up and malfunction state. |
| Surrounding intensity | Less than 15,000 lx |
| Ambient temperature and humidity | 14 °F to 122 °F (-10 °C to 50 °C), below 85% RH (without dew, frost) |
| Storage temperature and humidity | -22 °F to 158 °F (-30 °C to 70 °C), below 85% RH (without dew, frost) |
| Vibration resistance | 10 Hz to 55 Hz double amplitude of 0.06 in (1.5 mm) for 2hrs in each X, Y, and Z direction 55 Hz to 200 Hz 98 ms2 sweep of 2 min for 1hr in each X, Y and Z direction |
| Vibration resistance (Operating) | 55 Hz to 150 Hz 19.6ms2 sweep of 2 min for 30 min in each X, Y and Z direction |
| Shock resistance | 196 ms2 (20 G) X, Y and Z direction 10 times. |
| Protective structure | IP 65 |
| Material | Front case Polycarbonate, Rear case: Aluminum |
| Dimensions (W×D×H) | 1.97 in × 1.97 in × 2.76 in (50 mm × 50 mm × 70 mm) (sensor only) |
| Weight | 0.29 lb (130 g) (Excluding cable) |
