Overview

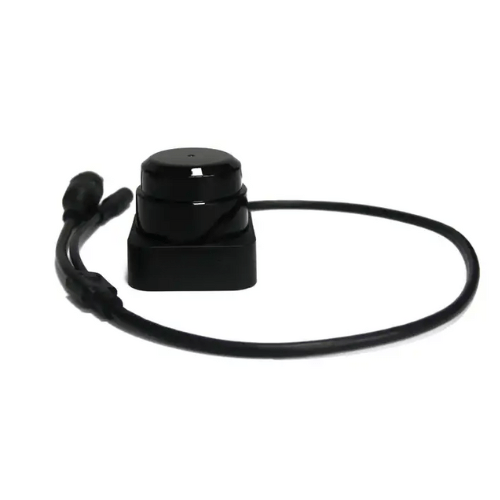

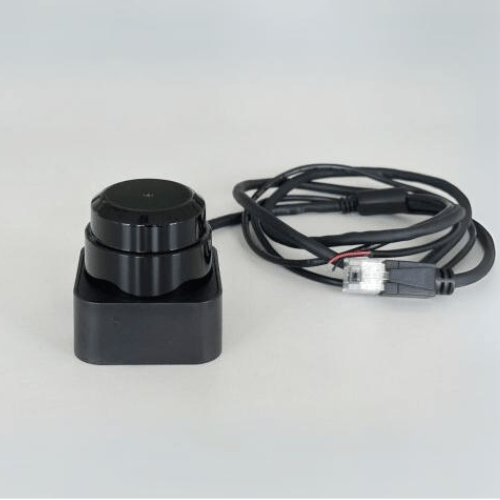

The Specimen Track Laser Lidar Motion Sensor is pulsed laser scanning ranging module, it makes use of pulsed laser launching to the target a single laser pulse, by receiving returned from the target diffuse reflection laser pulse echo round-trip time calculation and processing, its operation target distance vis a serial port to send data and angle information to other devices. Laser scanning ranging modules have been widely used in the following fields. such as Robot sweeper, Service robot, AGV, Security and Protection, UAV and act.
Technical Specifications
| Distance | 3.9 in (0.1 m) to 1574.8 in (40 m) |
| Accuracy | 1.1 in (30 mm) |
| Range Resolution | 0.3 in (1 cm) |
| Frequency | 18 kHz |
| Measure Angle | 360 º |
| Angle Resolution | 0.2 º, 0.3 º |
| Scan Frequency | 10 Hz, 15 Hz |
| Supply Voltage | DC 5 V |
| Power Dissipation | <3 W |
| Temperature | 14 ºF to 122 ºF (-10 ºC to 50 ºC) |
| Size | 2.1 in x 2.1 in x 2 in (55.5 mm x 55.5 mm x 51 mm) |
| Weight | 0.2 lb (102 gm) |
