Overview

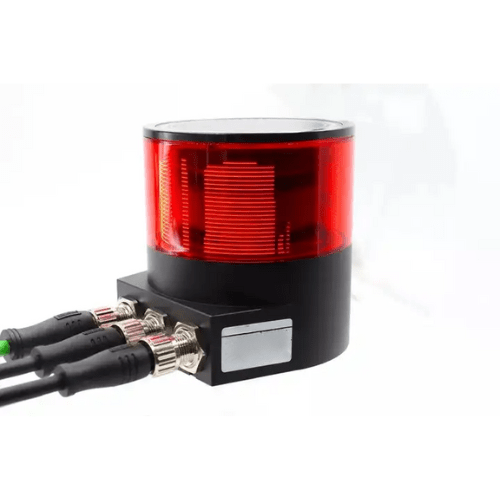

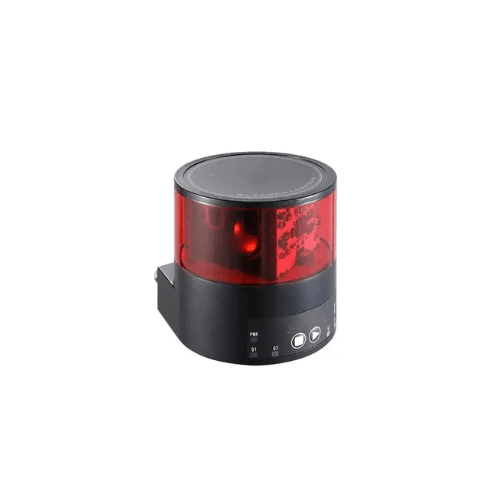

Specimen Track LiDAR 3D scanner sensor Scanning angle 360°, scanning radius 50 m, accuracy 2 cm, scanning frequency 50 KHz to 200 KHz, minimum angular resolution 0.018°, scanning window LED rotation display, support for Ethernet, 6 W ultra low power consumption, noise filtering, etc.
Features
- Immune to environmental interference
- Wide measurement range
- High accuracy
- Stability in high dynamic, open and narrow areas
Technical Specifications
| Operating voltage | DC 18 V to 60 V |
| Rated power | about 6 W |
| Light source | Laser wavelength 905 nm |
| Laser class | 1 (IEC 60825 1 2014, EN 60825 1 2014) |
| Detection distance | 0.1 m to 50 m |
| Detection angle | 360° |
| Identify object shape any shape, reflectivity calculated by detection | Identify object shape any shape, reflectivity calculated by detection |
| Angle resolution Minimum | 0.018° (Determined by laser scanning frequency, scanning motor speed, single point sampling times) |
| Switch input | 6 NPN |
| Switch output | 4 NPN |
| Rs 485 port | RS 485 (Modbus RTU) |
| CAN BUS port | CAN BUS |
| Ethernet | TCP or UDP |
| Scanning frequency | 50 K, 100 K, 150 K, 200 K can be set |
| Scanning motor speed | 10 Hz, 15 Hz, 20 Hz, 25 Hz, 30 Hz can be set |
| Single point | 1-50 (settable) |
| Pulse Time | 5 n s |
| Set time | <30 ms |
| Absolute accuracy | ±20 |
