Overview

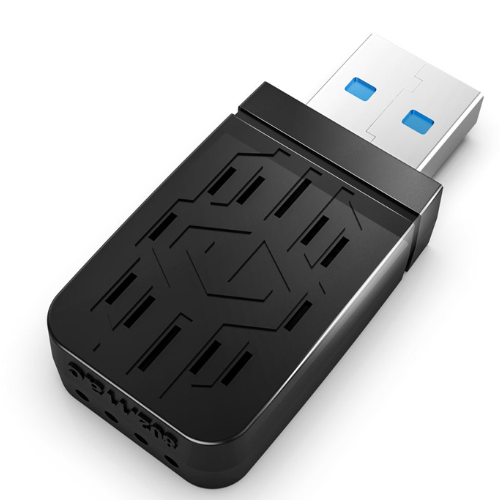

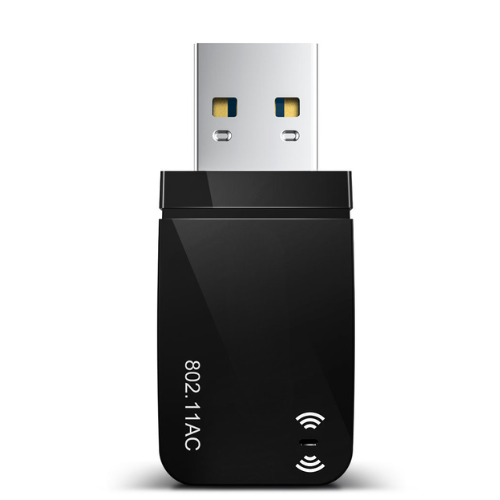

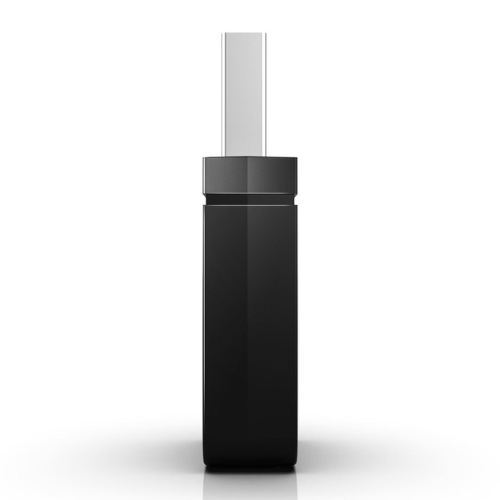

GAOTek – 5G WiFi Dongle Antena with USB is 802.11B/G/N/AC Dual Band USB Adapter is an ideal powerful device for connecting desktop computer into wifi network. It features a super thin size and is very convenient to use (plug and play)! Works over 2.4G and 5G
Features
- Support advanced 2*2 tech with up to 867Mbps up and down stream data rate
- Complied with 2.4GHz & 5GHz IEEE802.11a/b/ac Draft2.0 Standards
- 20Mhz and 40MHz,80MHZ bandwidth transmission
- Wireless security-64/128-bit WEP, WPA, WPA2
- QoS Enhancement WMM
- DSSS with DBPSK and DQSK, CCK modulation with long and short preamble
- OFDM with BPSK, QPSK,16QAM,256QAM Modulation
- WPS hardware button
Technical Specifications
| Category | Details |
| Wireless Standards | IEEE 802.11n,
IEEE 802.11g, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11a |
| Transmit Speed | 802.11b: 1 or 2 or 5.5 or 11 Mbps
802.11g: 6 or 9 or 12 or 18 or 24 or 36 or 48 or 54 Mbps 802.11n: up to 300 Mbps 802.11ac: up to 867 Mbps |
| Frequency Range | 2.412 to 2.4835 GHz
5.180 to 5.320 GHz 5.500 to 5.700 GHz 5.745 to 5.825 GHz |
| Work Channel | 1 to 14 (2.4 GHz)
36 to 165 (5 GHz) |
| Work Power | 18 dBm (Typical) |
| Sensitivity | 11n: -68 dBm at 130M, -68 dBm at 108M
11g: -69 dBm at 54M 11b: -85 dBm at 11M 11ac: -59 dBm at 867M |
| Wireless Security | WPA/WPA2/WPA-WPA2/802.1x,
64 or 128-bit WEP, WPS (PIN, PBC) |
| Supported Operating Systems | Windows 2000/XP/Vista/Win7/Win8/Win8.1/Win10/Win11/Mac OS/Linux |
| Host Interface | USB 3.0 |
| LED Indicator | BLUE (Link/Act) |
| Antenna Type | Internal Omni-directional Antenna |
| Environment | Operating Temperature: 0℃ to 45℃
Storage Temperature: -20℃ to 75℃ Operating Humidity: 10% to 90% RH (Non Condensing) Storage Humidity: 5% to 95% RH (Non Condensing)
|
