Overview

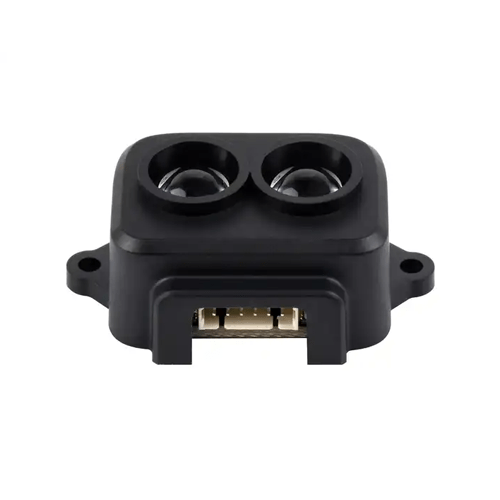

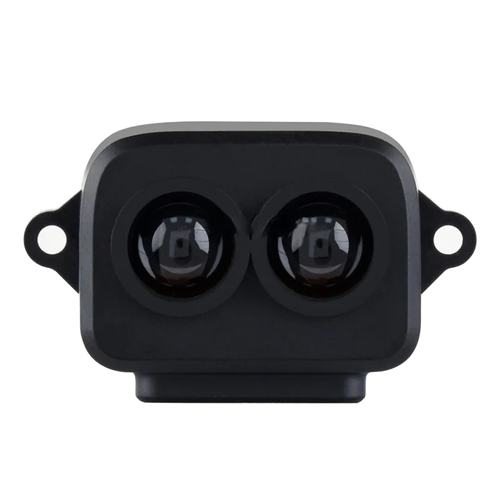

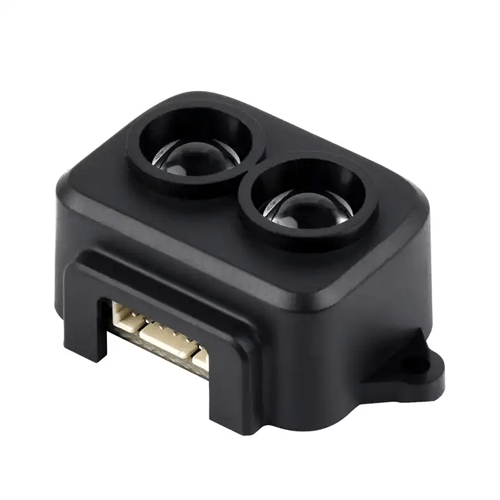

Specimen Track LiDAR ranging sensor is a single point ranging Lidar based on the TOF principle. With its unique optical and electrical design, it adopts an 850 nm infrared light source to achieve stable, accurate, and highly sensitive distance measurements. This sensor has built-in adaptation algorithms for a variety of application environments and targets and is open to a variety of adjustable configurations and parameters. It can ensure excellent range performance in complex environments and meet the needs of customers in complex application scenarios.
Features
- 25 ft ranging distance
- Low power, more power saving
- Compact size
- Easy integration
- TOF ranging principle
- Powerful adaptability
- High performance, more stable
- Supports UART I2C interfaces
Technical Specification
| Ranging distance | 0.66 ft to 26.25 ft (0.2 m to 8.0 m) 90% reflectivity (Indoor 0 klux) 0.66 ft to 8.2 ft (0.2 m to 2.5 m) 10% reflectivity (Indoor 0 klux) 0.66 ft to 26.25 ft (0.2 m to 8.0 m) 90% reflectivity (Outdoor 90 klux) 0.66 ft to 8.2 ft (0.2 m to 2.5 m) 10% reflectivity (Outdoor 90 klux) |
| Frame rate | UART 1 Hz to 250 Hz (adjustable, default 100 Hz) I2C 1 Hz to 100 Hz (adjustable) |
| Ambient light resistance | 70 klux |
| Light source | VCSEL |
| Eye safety | Class 1 (IEC 60825) |
| Power supply | 3.7 V to 5.2 V |
| Power | <0.35 W |
| Communication level | LVTTL (3.3 V) |
| Central wavelength | 850 nm |
| Field of view | 2° |
| Average current | <70 mA |
| Peak current | 150 mA |
| Communication interface | UART, 12 C, I or O |
| Case material | ABS, PC |
| Accuracy | 2.36 in (6 cm) 0.66 in to 9.84 in (0.2 m to 3m), 2% 9.84 ft to 26.25 ft (3 m to 8 m) |
| Distance resolution | 0.39 in (1 cm) |
| Storage temperature | -4 ℉ to 167 ℉ (-20 ℃ to 75 °C) |
| Operating temperature | 14 ℉ to 140 ℉ (-10 ℃ to 60 ℃) |
| Dimension | 1.38 in x 0.84 in x 0.53 in (35.00 mm x 21.25 mm x 13.50 mm) |
| Weight | <0.01 lb (5 g) |
