Overview

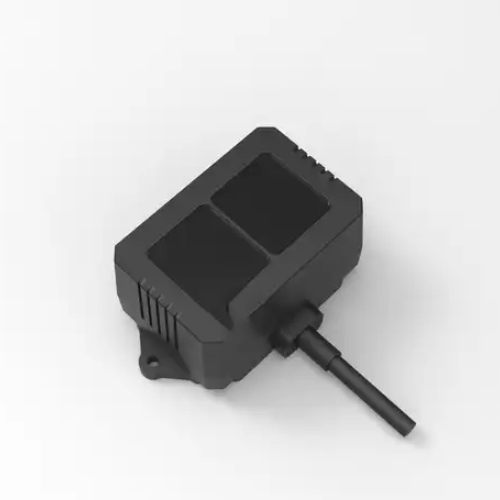

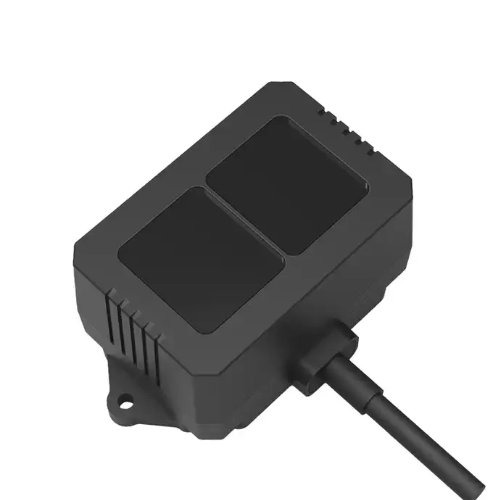

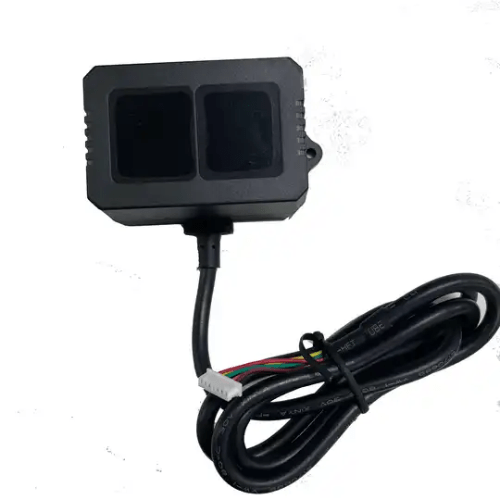

Specimen Track LiDAR laser distance sensor autofocus is an updated single point ranging LiDAR. It has been optimized in communication interface, input voltage and reverse protection.
Features
- 7 V to 30 V wide range input voltage
- Reverse protection
- CAN or RS 485 interface
Technical Specifications
| Distance resolution | 0.4 in (1 cm) |
| Frame rate | 100 Hz |
| Ambient light immunity | 100 Klux |
| Enclosure rating | IP 65 |
| Light source | VCSEL |
| Central wavelength | 850 nm |
| FOV | 3° |
| Supply voltage | 7 V to 30 V |
| Average current | <70 mA 12 V |
| Power consumption | <0.85 W 12 V |
| Peak current | 100 mA |
| Operation temperature | -4 °F to 140 °F (-20 °C to 60 °C) |
| Size | 1.4 in x 0.7 in x 0.8 in (35 mm x 18.5 mm x 21 mm) |
