Overview

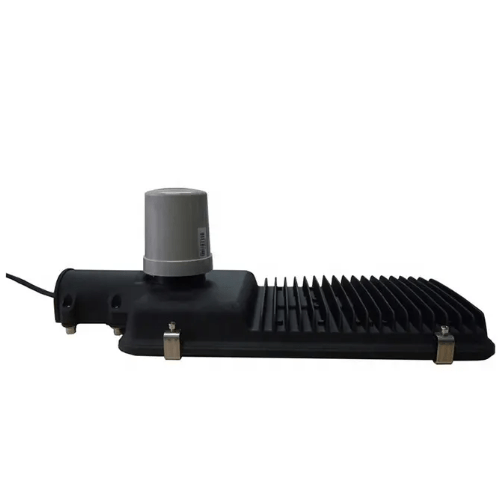

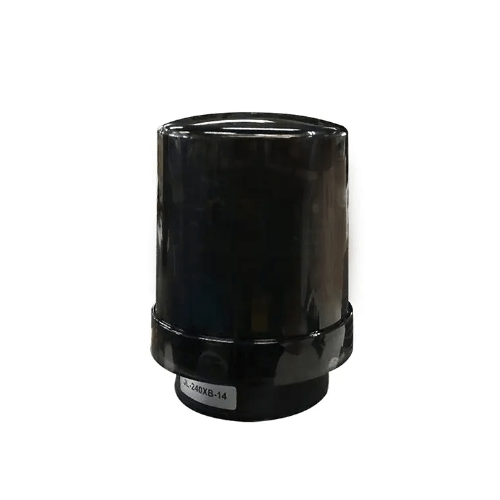

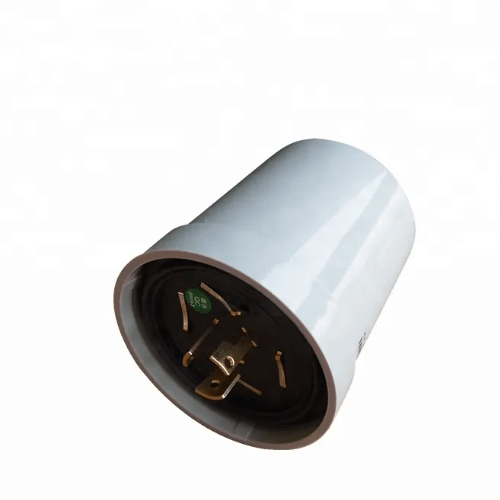

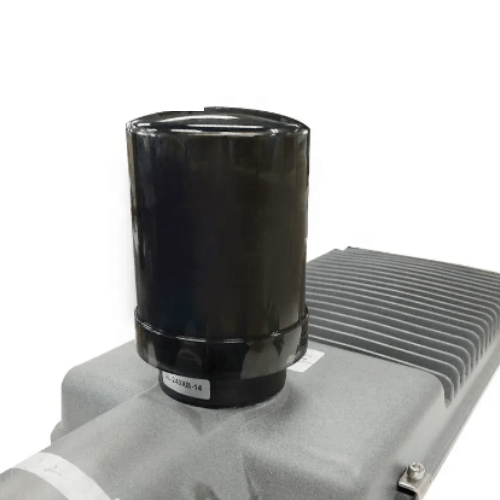

Specimen Track dimmer IoT devices sensor offers powerful functions, easy implementation, wiring-free, reliable operation, and easy maintenance. It is a high-performance and energy-saving product, specialized for intelligent street lighting, and can help cities reduce their energy consumption and save money.
Features
- Monitor current, voltage, power, frequency, and temperature
- Switch and dim lamps with high voltage PWM signals
- Over-current protection, lamp condition detection, and default lighting
- Control various types of lamps, such as LED, sodium, and metal halide
Technical Specifications
| Input or Output Power | AC 110 V to 277 V |
| Transmit Power | 23 dBm |
| Sensitivity | -135 dBm |
| Antenna Type | Built-in |
| Antenna VSWR | ≤ 2.0 |
| Antenna Gain | 3 DB |
| Rated Output Current | 4 A |
| IP Code | IP65 |
| Dimming Type | 0 V to 10 V or PWM |
| Industrial operating temperature range | – 40 °F to 185 °F (- 40 °C to 85°C) |
| Dimension | Dia 3.30 in x 3.85 mm (84 mm x 97.8 mm) |
