Features

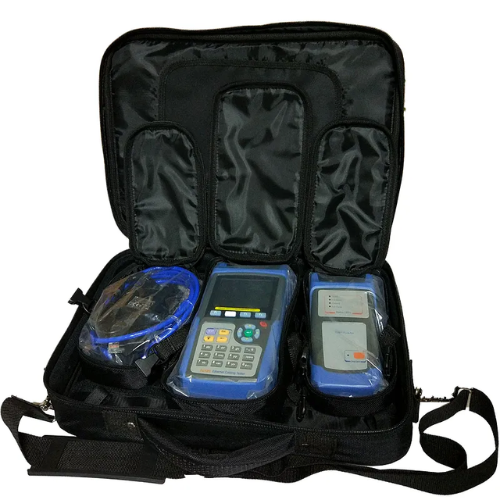

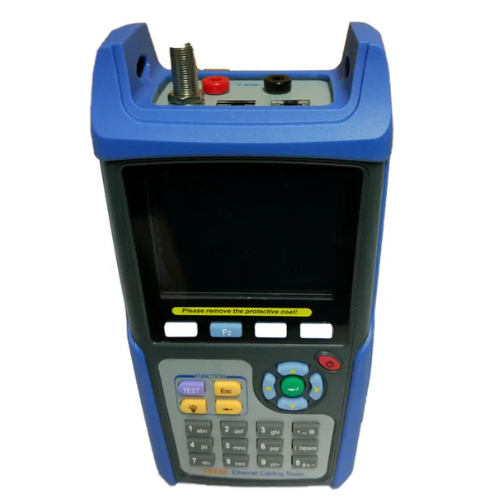

- Contains a main unit and a remote unit.
- Multi connector one RJ45 connector for UTP or STP data cable testing
- one F connector for coax testing
- one RJ 11 connector for telephone cable testing
- Tone generator
- Two additional functions, ping and BER Test
- Store at least 100 results
- Toolbox software to analyze the results on PC
Technical Specifications
| Accuracy | ± 4.92 ft (± 1.5 m) |
| Length | 0 mi to 0.109 mi (0 m to 176 m) (UTP) 0 mi to 0.12 mi (0 m to 200 m) (Coax) |
| Propagation Delay | 0 ns to 850 ns |
| Delay Skew | 0 ns to 100 ns |
| DC Resistance | 0 ohm to 100 ohm |
| RF Frequency | 1 MHz to 250 MHz |
| RF Items | NEXT 0 dB to 70 dB Insertion Loss of 0 dB to 40 dB |
| Testing interface | RJ45; RJ11; F; Banana Jacks |
| Another interface | USB |
| Power Supply | Main unit: 7.4 V or 2.4 mAH Lithium battery Remote unit: 7.4 V or 1.1 mAH Lithium battery |
| Working Time | 3.5 hrs |
| Charging Time | 5 hrs |
