Overview
Advanced Ethernet Tester with 39.76 mi Range & 8-Hour Battery. It integrates 12 functions, such as auto OTDR expert OTDR, event map, OPM, RJ45 cable tracker, and “computer level” file management to meet various test requirements in different occasions. OTDR has a maximum dynamic range of 26 dB, 8G memory, and can store more than 200,000 curves; it is equipped with 4000 mAh high-density polymer lithium battery, intelligent power saving management, measuring time of more than 8 hours, and supporting power supply and charging of the power bank. Specimen Track ethernet testers are used to measure the length, loss connection quality and other parameters of optical fiber. It is widely used in FTTX, secondary backbone network engineering construction, maintenance and emergency repair test, and production measurement of optical fiber and cable.
Technical Specifications
| Dynamic Range | 26 dB or 24 dB |
| Event Blind Zone | 8.2 ft (2.5 m) |
| ATT Blind Zone | 26.24 ft (8 m) |
| Test Range | 0.31 mi or 0.6 mi or 1.2 mi or 2.4 mi or 4.9 mi or 9.9 mi or 19.88 mi or 39.76 mi or62.13 mi (500 m or 1 km or 2 km or 4 km or 8 km or 16 km or 32 km or 64 km or 100 km) |
| Pulse Width | 3 ns or 5 ns or 10 ns or 20 ns or 30 ns or 50 ns or 80 ns or 160 ns or 320 ns or 550 ns or 800 ns or 1 μs or 2 μs or 3 μs or 5 μs or 8 μs or 10 μs or 20 μs |
| Ranging Accuracy | ± (3.28 ft (1 m) + Sample interval + 0.005% x Test distance) |
| Linearity | ≤ 0.05 dB or dB |
| Loss Resolution | 0.001 dB |
| Loss Threshold | 0.20 dB |
| Range Resolution | 0.003 ft (0.001 m) |
| Refractive Index | 1.00000 to 2.00000 |
| Reflection Accuracy | ± 3 dB |
| File Format | SOR Standard File Format |
| Loss Analysis | 4-Piont method or 5-point method |
| Laser Safety Level | Class II |

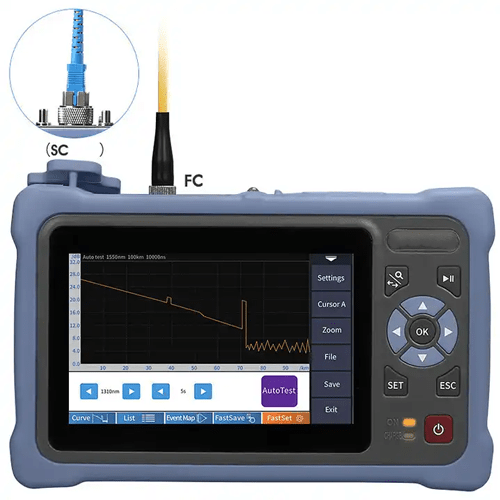

| Connector | FC or UPC (Interchangeable SC & ST) |
| Refresh Rate | 3 Hz |
| Multitasking | Support |
