Overview

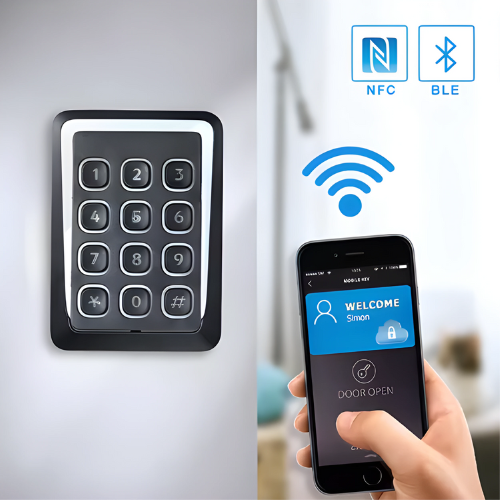

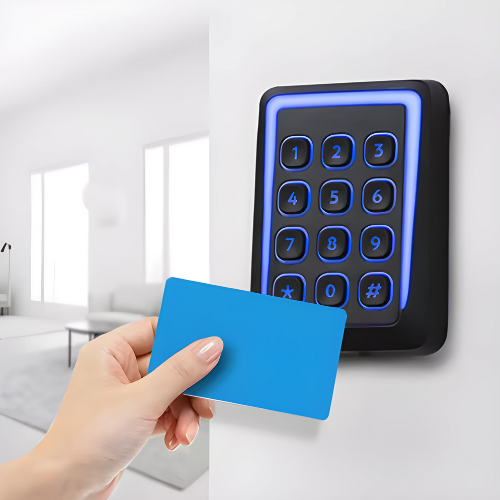

Specimen Track RFID contactless 13.56MHz 125KHz IC ID NFC card skimmer is compatibility with secure RFID-technologies, BLE, NFC mobile credential and QR code incorporated in a robust, yet timeless design, makes them ideally suited for both indoor – and outdoor installations in all kinds of physical access control applications.
Technical Specifications
| Operating Frequency | 125kHz and 13,56MHz |
| Contactless ISO Standard | ISO14443A or B, ISO18092 NFC |
| Contactless Cards | – EM Prox, EM4100, EM4200 – MIFARE Classic 4byte, 7 byte, MIFARE Plus, MIFARE DESFire EV1 – ISO18092 NFC tags |
| Mobile ID | ISO18092 NFC, BLE and optional QR Code scanner |
| Secure Access Module | MIFARE SAM AV2, SAM card connection slot |
| Communication Interface | Wiegand, Clock or Data, RS485 (OSDP 1, OSDP 2, including Secure channel), BLE 4.0 |
| Keypad | 12 digit keypad |
| Indicators | – LED bar with red, green and Amber – Buzzer |
| Tamper Alarm | Yes |
| Operating Temperature | – 104°F + 158°F (-40° to 70°C) |
| Operating Humidity | 0 % to 95% RHNC, Relative Humidity No Condensation |

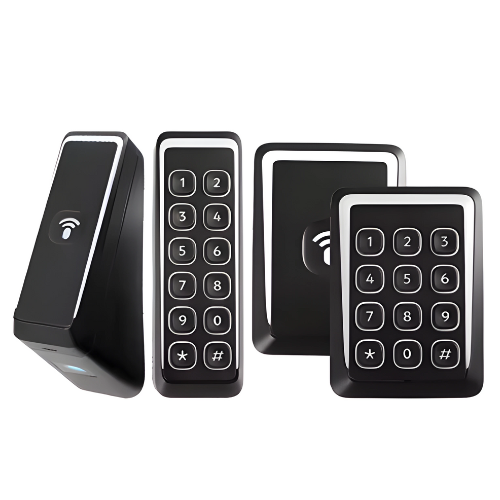

| Size | Standard or slimline size |
| Housing Dimensions | Slimline: 5.551 in 5.55 inches, 0.984 in 0.98425 inches, = 1.890 in 1.8898 inches. Standard:4.291 in 4.29134 inches., = 0.984 in 0.98425 inches, 3.110 in 3.11024 inches. |
| Power | 9 V to 30 V DC |
| Compliance | CE, RoHS3, FCC |
