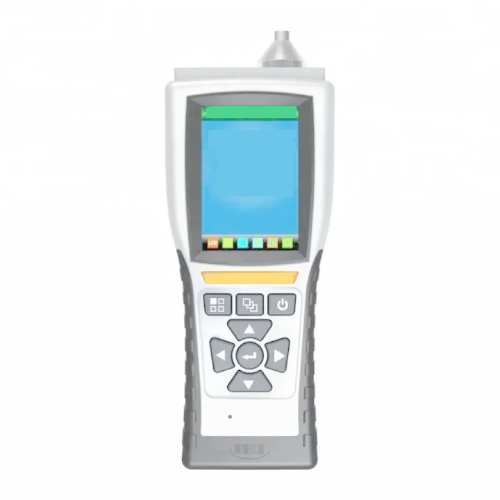

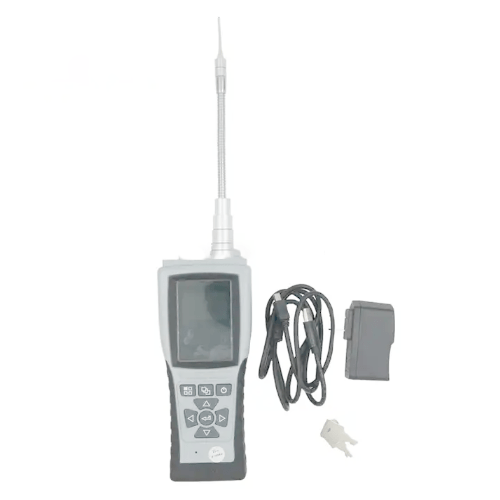

Overview
Advanced VOC Tester with 2000 ppm Range and Smart Alerts supports continuous monitoring of a variety of single gas detection equipment. This product is suitable for environmental monitoring, industrial production and other harmful gases working environment, which can effectively protect the health and safety of staff is not compromised.
Features
- Smart probe design, calibration and Maintenance more convenient in the future
- Fault, Warning, operator error, alarm will be smart tips
- Built-in CF calibration coefficients (VOC measurements only valid)
- With audible alarm, visual alarm function, the status bar also displays alarm status
- Full-color 3.5 in (8.89 cm) TFT screen, color LCD display and intuitive
- Can be both digital and curve display of gas concentration in two ways
- With USB communication port, you can speed 9600 bytes to communicate directly with the computer
- With test record function, can store a month’s measurement data and instrument or computer can view the data
- With alarm recording function, you can record the last four times the alarm time and type
- With calibration can record the last four times the size of the calibration time span
- Can be set high reported, underreporting, TWA, STEL, shutdown time, pump speed, etc
- LCD display real-time concentration, LED, buzzer alarm
Technical Specifications
| Sampling Way | Pump type |
| Test Range | 0 ppm to 20 ppm or 50 ppm or 100 ppm or 200 ppm or 1000 ppm or 5000 ppm |
| Resolution | 1 ppm |
| Response Time | <20 s |
| Indicate Way | LCD display real-time concentration, LED, buzzer alarm |
| Data Storage | Can store multiple sets of data |
| Pressure Range | Atmospheric pressure 10% |
| Power Supply | Lithium battery (4.2 V or 3000 mAh) |
| Operating Current | normal current: ≤50 mA; Alarm current: ≤200 mA |
| Operating Temperature | -40°F to -94° F (-40° C to -70° C) |
| Relative Humidity | 15% to 95%, non-condensing |
| Storage Temperature | -4° F to – 76° F (-20°C to – 60°C) |
| Storage Humidity | ≤90%, no condensation |
| Sensor Life | 1 year |
| Continuous Work Hrs | 30 hrs above |
| Charge Time | 6 hrs to 8 hrs |
| Housing Material | PC |
| Installation | Handheld or Stand-in |
| Protection Class | IP65 |
