Bluetooth Beacon with nRF 52 Chip, 70m Range, 18 Month Battery, Configurable – Specimen Track

Bluetooth beacon with nRF 52 chip, 70m range, 18-month battery life, and configurable parameters. Features an acceleration sensor and buzzer.

SKU: STRBB-165 Category:

Features

  • Chipset nRF 52
  • Battery CR 2032 Panasonic battery
  • Battery life 18 months based on broadcasting rate 1 second
  • Sensor acceleration sensor
  • Buzzer
  • All the parameters can be configured



Technical Specifications

ChipNRF 52
Battery modelCR 2032
Operation Voltage2.0 V to 3.6 V
Operation Frequency2400 MHz to 2483.5 MHz
Frequency Error+/- 20 KHz
ModulationQ QPSK
Standby current12 uA
Output Power4 dBm to -40dBm
Receiving Sensitivity-93 dBm
Transmission distance229.7 ft (70 m)
Antenna50 ohms
StateOperation Current (uA)
Sleeping Mode3.6
Connectable Mode142
Non-Connectable Mode22.5

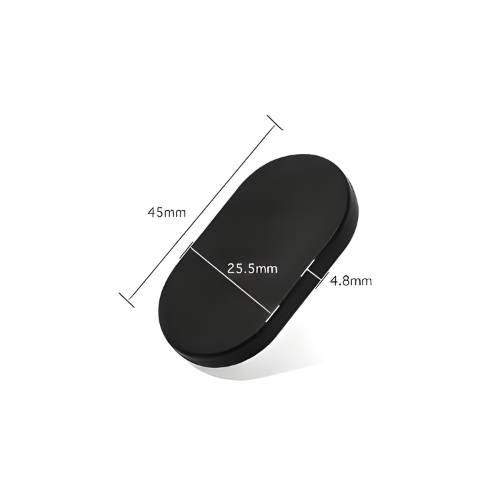

Dimensions1.8 in x 1 in x 0.2 in (45.2 mm x 25.7 mm x 5 mm)
