Overview

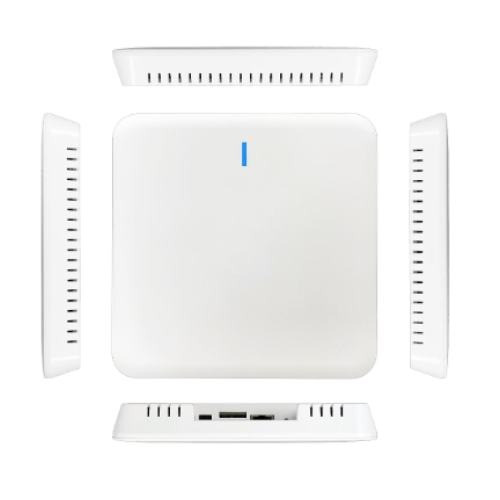

Specimen Track’s ceiling LoRaWAN gateway with ethernet, WiFi & LTE backup is a ceiling-mounted indoor gateway designed to deliver reliable IoT connectivity. This product is based on LoRa low-power wide area network technology and features a built-in high-performance 8-channel transceiver chip that supports half-duplex mode. With its flexible installation options, it can be easily mounted on ceilings, walls, or columns, making it suitable for diverse indoor scenarios. This device provides multiple communication methods for connecting to the cloud, ensuring strong and stable data transmission. It supports high-speed 4G LTE cellular networks, WiFi connectivity, and also includes a wired Ethernet port (RJ45) for local area network or broadband connections through a standard cable. By combining versatility, secure connectivity, and efficient performance, this product offers a dependable solution for IoT deployments in modern environments. It ensures continuous network backup and seamless integration for a wide range of applications.
Features
- Semtech high-performance 8-channel SX1302 chip (supports half-duplex communication)
- Dual link backup for stable data transmission
- Network Support: Ethernet, cellular network and WiFi
- Supports LoRaWAN Network Protocols
- Supports Chirpstack platform
- Installation Options: Ceiling type and Wall-mounted
Technical Specifications
| Wired network | 10 M / 100 Mbps adaptive |
| WiFi | Support 802.11b / g / n |
| Networking | LoRaWAN Network |
| Power supply mode | 12 V power adapter |
| Power adapter input | 200 V to 240 V at 50 Hz to 60 Hz |
| Power adapter output | 12 V 2 A, 24 W max |
| Average power consumption | 2.4 W |
| Peak power consumption | 6 W |
| LTE Antenna | Built-in |
| LoRa Antenna | Built-in |
| WiFi Antenna | Built-in |
| Ethernet interface | 10 M / 100 Mbps adaptive |
| SIM card holder | Standard Micro SIM card |
| Installation | Wall-mounted or ceiling-mounted |
| DC connector | 12 V DC |
| Operating temperature (gateway) | 32 °F to 158 °F (0 °C to +70 °C) – No outdoor use |
| Operating temperature (power adapter) | 32 °F to 104 °F (0 °C to +40 °C) – Outdoor use strictly prohibited |
| Storage temperature | -4 °F to 185 °F (-20 °C to +85 °C) |
| Relative humidity | 5% to 95% at 77 °F (25 °C) (no condensation) |
| Dimensions | 6.61 in × 6.61 in × 1.02 in (168 mm × 168 mm × 26 mm) |
