| Link Map |
Available |
| Pass/Fail Judgment |
Available |
| Distance Unit |
m, km, mile, ft, kft |
| PC Analysis Software |
Available |
| Languages |
English, Español, Chinese, Português, Français, Русский |
| Optical Connector |
SC/UPC (FC/UPC, ST/UPC, LC/UPC is Optional) |

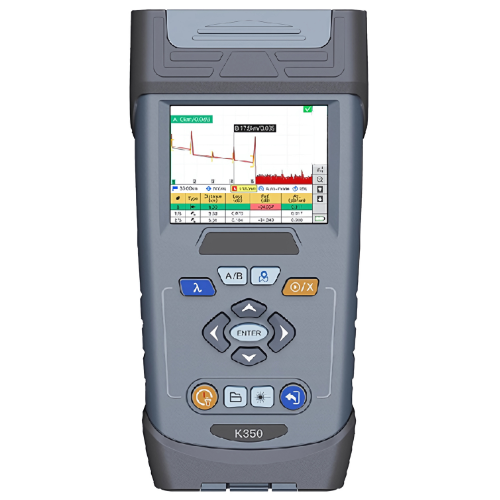

| Display |
3.5-inch color TFT LCD (Resolution: 640 × 480) |
| Electrical Interface |
Charge port × 1, USB 2.0 × 3, RJ45 × 2 |
| Operating Temperature |
-4 °F to 122 °F (-20 °C to 50 °C) |
| Storage Temperature |
-4 °F to 140 °F (-20 °C to 60 °C) |
| Altitude |
4000 m (13,123ft) |
| Humidity |
0 % to 90 % RH (non-condensing) |
| Power Requirements |
100 to 240VAC, 50/60Hz (AC Adapter) |
| Battery |
3000 mAh |
| LED Light Illumination |
≥15000 mcd |
| Operating Time |
5 hours |
| Data Storage |
Internal: ≥1000 waveforms; External: USB memory |
| Distance Range |
0.3 mi (0.5 km) to 124 mi (200 km) |
| Pulse Width |
5 to 20000ns |
| Event Dead Zone |
3.3 ft (1 m) |
| Attenuation Dead Zone |
11.5 ft (3.5 m) |
| Number of Sampling Points |
Max. 80000 |
| Sampling Resolution |
1.6in (0.04m) |
| Distance Measurement Accuracy |
± (2.46ft + Measurement Distance × 2 × 10⁻⁵ + Sampling Resolution) |
| Loss Measurement Accuracy |
±0.03 dB |
| Return Loss Measurement Accuracy |
±2 dB |
| OPM (Optical Power Meter Module) |
Available |
| Wavelength Setting |
800 nm to 1650 nm |
| Power Range |
-70 dBm to +6 dBm |
| Measure Accuracy |
< ±0.2 dB or ±5% |
| Display Resolution |
0.01dB |

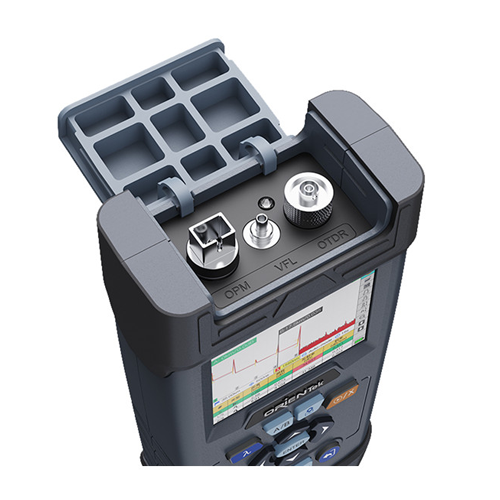

| Optical Input Port |
SC/UPC + 2.5mm Universal Ferrule |
| SLS (Stabilized Light Source) |
Available |
| VFL (Visual Fault Locator) |
Available |
| Dimension |
4.6 in × 8.6 in × 2.1 in (11.8 cm × 21.8 cm × 5.5 cm) |
| Weight |
1.6 lbs (0.73 kg) |
