Overview

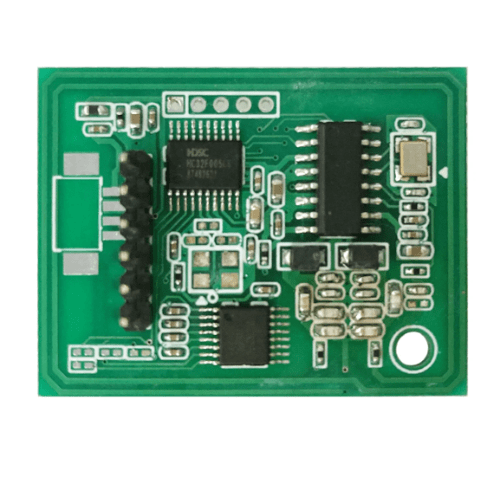

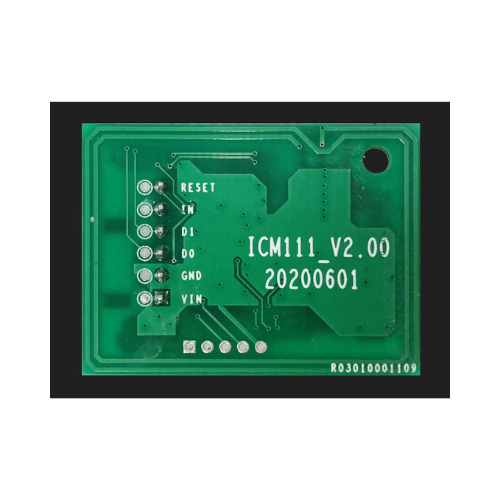

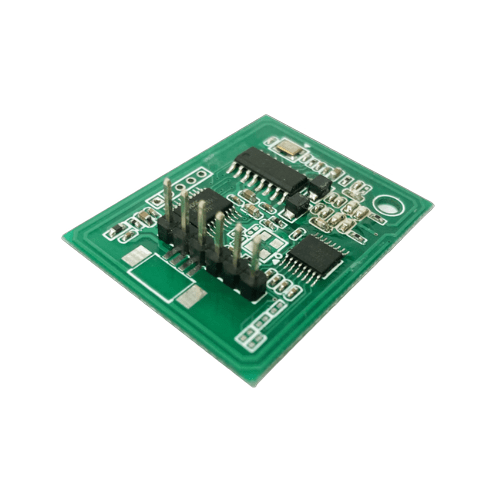

Specimen Track High-Quality OEM TTL OR WG 26 or 34 WG Data Output. This series of modules provides a variety of interface options and adopts an integrated antenna design, which integrates small size, ease of use, and reliability. Can be customized according to customer requirements, and widely used in access control systems, school management, community management, membership management, asset management, anti-counterfeiting control, and other fields.
Features
- Frequency and Protocol Compatibility
- Compact Size
- Versatile Data Output Options
- Read Range
- Low Power Consumption
- Adjustable Baud Rate
- Wide Operating Temperature Range
- User-Friendly Features
Technical Specifications
| Frequency | 13.56 MHz |
| Data Output | TTL or WG 26 or 34 WG |
| Read Range | 0 in to 2.36 in (0 cm to 6 cm) |
| Card Support | Mifare S 50 or S 70, FM 11 RF 08 |
| Protocol | ISO 14443-A |
| Temperature | 14 °F to 158 °F (-10 ℃ to 70 ℃) |
| Dimension | 0.31 in X 1.14 in X 0.45 in (8 mm X 29 mm X 11.5 mm |
| Weight | 7.05 oz (200 g) |
