Digital Laser Sensor, DC 10-30V, 5-Digit Display, IP 65, 1mm Resolution – Specimen Track

Name: Digital Laser Sensor, DC 10-30V, 5-Digit Display, IP 65, 1mm Resolution - Specimen Track -
SKU: STRLDS-112

The Digital Laser Sensor has a power consumption of ≤2.1 W, with a quick initialization time of ≤250 ms, with a preheating time of less than 10 sec.

SKU: STRLDS-112 Category: Motion Sensors

Technical Specifications

Supply voltage	DC 10 V to 30 V
Residual ripple	≤5 V
Power consumption	≤2.1 W
Initialization time	≤250 ms
Preheating time	≤10 sec
Shell material	Aluminum alloy or Plexiglass
Connection type	M 12 waterproof connector, lead wire

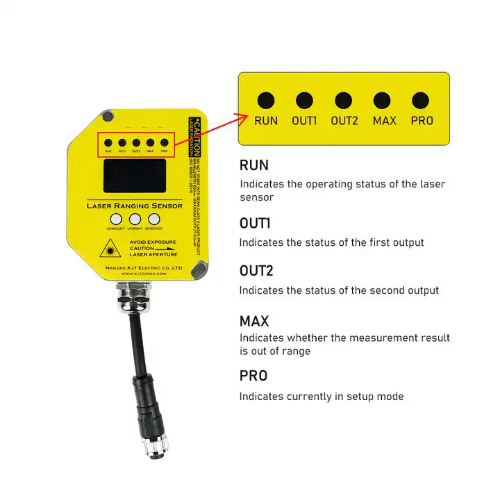

Display	5-digit digital tube, 5 X LED
Enclosure protection class	IP 65
Measuring objects	Natural objects
Resolution	0.04 in (1 mm)
Accuracy	0.06 in (1.5 mm) +D 0.5%
Frequency	5 HZ, 10 Hz, 20 HZ, 30 Hz
Output time	≥4 ms
Light source	red laser
Weight	0.8 lb (360 g)
