Disposable RFID Nylon Cable Tie Tag with Safety Seal for Containers – Specimen Track

Disposable RFID Nylon Cable Tie Tag Safety Seal for Containers offers a long reading distance and durability, ideal for securing containers, trucks, and trolleys.

SKU: STRLF-160 Category:

Overview

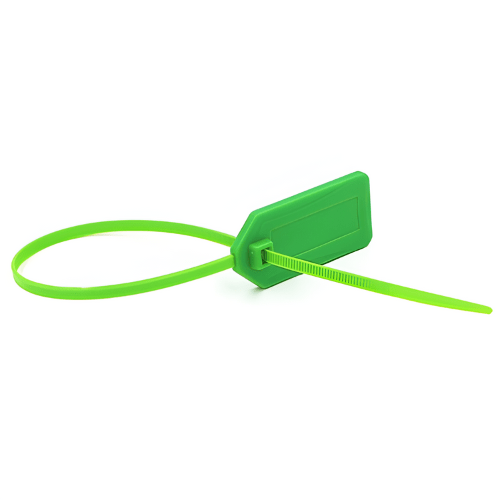

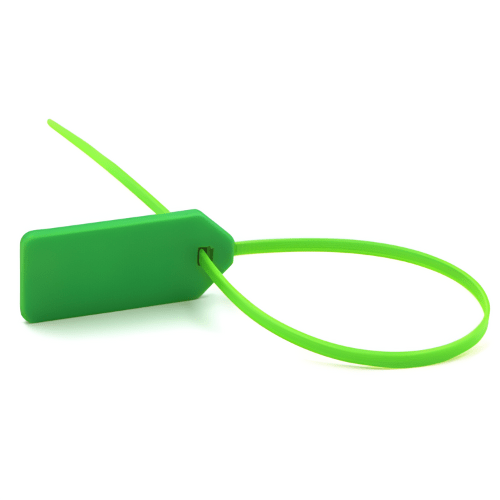

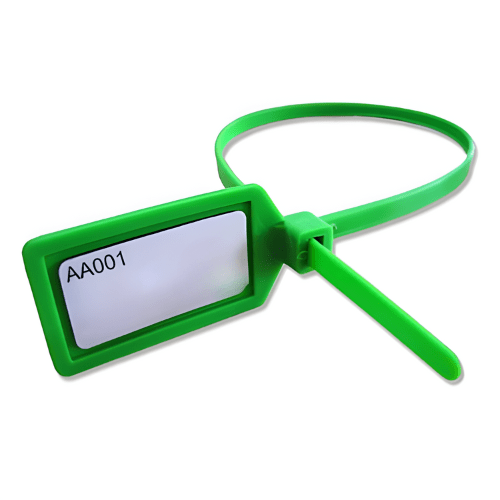

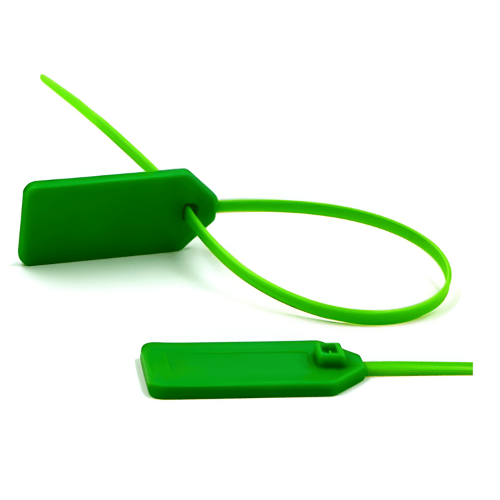

Specimen Track Customized Disposable NFC Ntag213 RFID Nylon Cable Tie Tag has a long reading distance, which is perfectly suitable for safety seal for containers, trucks or trolleys. Security seal for products, doors and shipping unit ,animal identification. and with a UHF cable tie tag and a UHF handheld reader, the reading distance could achieve 5 meters or above. With the RFID cable tie even metallic objects can be identified as well as objects that cannot be labelled. RFID cable ties are particularly suitable for the identification of big bags, tubes, metal boxes, small containers and recycled material. The RFID cable tag cannot be removed without destroying it. The RFID cable tie and the RFID safety seal can be printed on. The additional identification with a label is possible, too. The chip can be programmed beforehand. These RFID cable ties are a cost-efficient alternative to RFID hard tags Besides,UHF’character of anti-collision makes it much easier in practical operating. Several tags could be detected by the reader in one time, so that we do not need to detect the tags one by one, which saves a lot of time.



Technical Specifications

LF Frequency (125 kHz – 134,2 kHz : low frequency) Yes
RFID UHF Frequency (860 MHz – 960 MHz : ultra high frequency) Yes
HF or NFC Frequency (13,56 MHz : high frequency) Yes
Protocol EPC Global Gen2 ISO18000-6c
Shape Irregular Shape
Chip Type Read or Write
Power Supply Mode Passive
Usage lectronic Products, Luggage, Jewelry, Book, Garment, Shoe, Bag, Logistics
Material ABS
Application Logistics or Warehouse and So on
Operating Temperature 14 °F to 122 °F (-10 ᵒC to 50 ᵒC)
Recycle One-off
Color Green or Customized
Reading-Distance 22.97 ft (7 m)
Length 13.58 in (345 mm) or others
Adhesive No
Flexible Yes
Compatible with Metal (iron) Yes
EPC Memory (bits) 96 bits to 480 bits
Chip Type AH3
Maximum Temperature 185 °F (85 °C)
User Memory (bits) 512 bits
Deep 0.157 in (4 mm)
EPC Gen2 Yes
Operation Temperature -40 °F (-40 °C) or 185 °F (85 °C)
Use Category Special
Storage Temperature Polypropylene
Minimum Temperature -40 °F (-40 °C)
Material Polypropylene
Width 1.102 in (28 mm)
