Overview

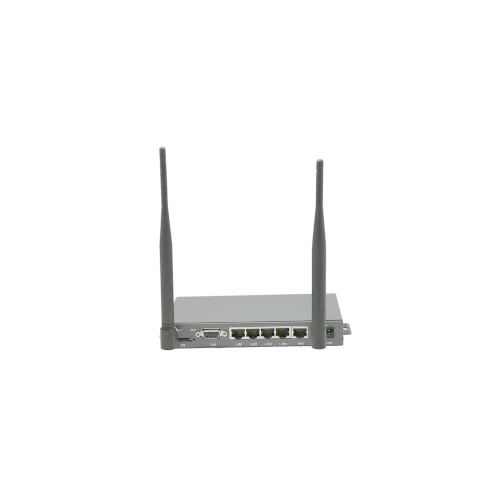

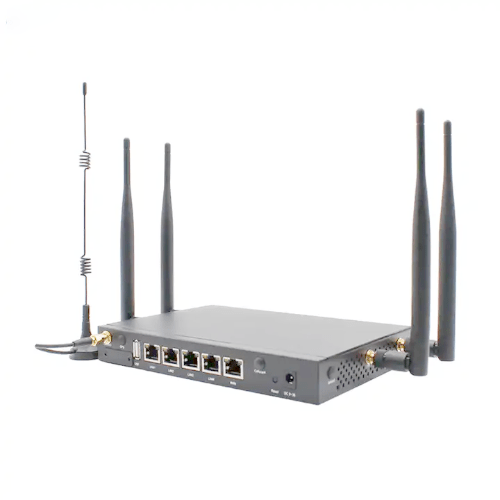

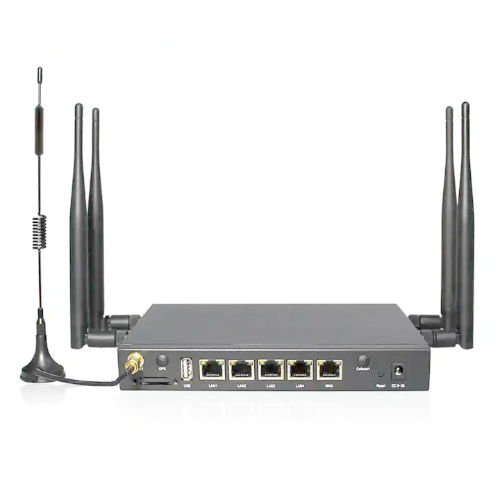

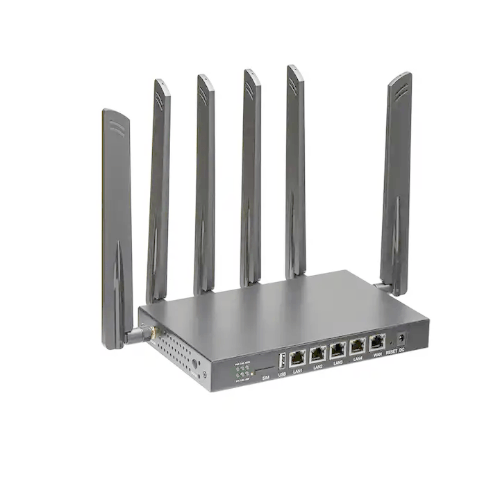

GAOTek’s Dual SIM Multi-Function Cellular Router with Gigabit Ethernet is a robust industrial 4G wireless router designed to meet diverse application needs. Combining Wi-Fi transmission, cellular mobile internet access, precise GPS positioning, serial port pass-thru transmission, and backend remote management, it offers versatile functionality. With superior processing power, extensive interfaces, and faster network speeds, it outperforms standard industrial routers. Ideal for applications such as car Wi-Fi, video transmission, PLC remote control, smart express cabinets, and video surveillance, this router ensures reliable and efficient connectivity across various scenarios, making it a perfect solution for both industrial and commercial use.
Features
- Dual SIM Card Slot
- Provide Auto Fail-Over for High Stability and Convivence
- Dual-Frequency Concurrency, More Efficient Transmission Speed
- Full Gigabit Ethernet Port
- Hardware Auto-Recovery
- Good Heat Dissipation with Metal Body
- Industrial Grade Design
- Cloud Access Smart Management Platform
Technical Specifications
| CPU | MTK 7621 |
| Flash | 128 Mbit |
| RAM | DDR 2 1 Gbit |
| WAN | 1 x 10 M, 100 M, 1000 M Ethernet Port, Auto MDI, MDIX, Built-in 1.5 KV Electromagnetic Isolation Protection |
| LAN | 4 x 10 M, 100 M, 1000 M Ethernet Port, Auto MDI, MDIX, Built-in 1.5 KV Electromagnetic Isolation Protection |
| SIM Card | 2 x Push-Push SIM card Slot |
| USB | 1 x USB Port |
| UART | 1 x RS 232 or RS 485 Serial Communication |
| Power | 1 x Standard DC Connector, Built-in Power Reverse Protection |
| Antenna | 1 x 4G Antenna 2 x 2.4 GHz Wi-Fi Antenna 2 x 5 GHz Wi-Fi Antenna 1 x GPS Antenna (optional) |
| LED Indicators | 1 x SYS System Status Indicator 4 x LAN Ethernet Status indicator 1 x WAN Ethernet Status Indicator 2 x WIFI Status Indicator 1 x NET Internet Indicator 1 x GPS Status Indicator |
| Reset | 1 x Pinhole Reset Button |
| Input Power | DC 12 V, 1.5 A |
| Power Range | DC 9 V to 30 V |
| Power Consumption | <2 A (12 V) |
| Enclosure | Metal Enclosure, Industrial Protection Grade IP 30 The enclosure and the system are safely isolated and are widely used in automotive and specific industrial applications |
| Dimensions | 7.87 in x 5.55 in x 1.10 in (200 mm x 141 mm x 28 mm) |
| Weight | 2.03 lb (920 g) |
