Overview

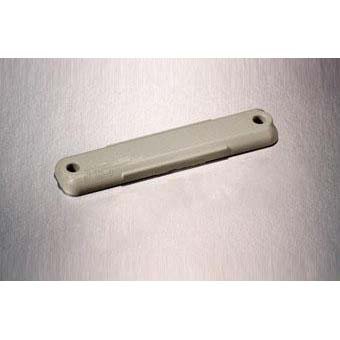

This passive UHF RFID tag is ideal for applications such as inventory control and tracking of conveyances, pallets and other high-value assets. It also offers high-performance RFID tag identification in metallic or non-metallic environments with a read range of over 10 m. It is encapsulated in a sturdy rigid encasement with manual, film, or foam attachment or adhesive backing options. The RFID tag has an IP68 protection rating allowing for robust operation even in harsh environments and it adheres to the MIL STD 810-F and BS EN 60068-2 standards.
Key Features
- Reliable, on metal read performance
- Highly durable and weatherproof encasement option
- 512-bit memory capacity
- 240 bit EPC global Class-1 Gen2-compliant Silicon
- Manual, film or foam adhesive options
- Ideal for inventory control and tracking of conveyances, pallets and other high-value assets
Technical Specifications
| Model | 115010 |
| Frequency | 866 MHz to 868 MHz |
| User Memory | 512 bits |
| Read Range On Metal | Up to 10 m |
| Encasement | Rigid case (ABS) |
| IC Type | Alien Higgs 3 |
| IP Rating | IP68 |
| Shock and Vibration | MIL STD 810-F BS EN 60068-2 |
| Attachment | Manual (std.) Film adhesive (opt.) Foam adhesive (opt.) |
| Operating Temperature | –20 °C to 55 °C |
| Dimensions | 104 × 33 × 8.4 (+/–1.0 ) mm, 4.1 × 1.3 × 0.33 ( +/–0.04 ) in |
| Weight | 22.0 g |
