Technical Specifications
| Switching Capacity (Bidirectional) | 352 Gbps |
| Forwarding Performance | 72 Mpps |
| Memory Size | 4 G |
| Buffer size | 740 MB |
| Power Input | DC -40 V to -72 V AC 100 V to 240 V |
| Typical Power Consumption | 75 W |

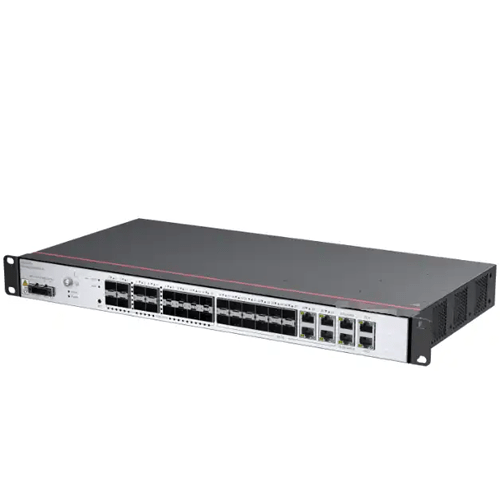

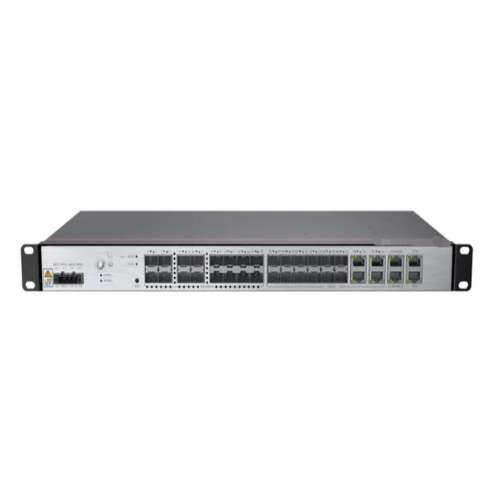

| Port Capability | 16 x 10 GE or GE or FE+12 x GE or FE(o)+4 x GE or FE(e) |
| L2 Feature | IEEE802.1q, IEEE802.1p, IEEE 802.3ad, IEEE 802.1ab, STP or RSTP or MSTP |
| L3 Feature | OSPFv2 or V3, RIPv2, IS-IS or IS-ISv6, BGPv4 or BGPV4+, IPv4 ACL or Telnet, 6VPE and Static routing protocol Dynamic ARP, static ARP, VLANIF interface and VLAN |
| MPLS | LDP, RSVP-TE, Segment Routing (SR) MPLS, L2VPN (VPLS, HVPLS, and VLL), L3VPN, and seamless MPLS, MPLS-TP |
| SRv6/EVPN | Segment Routing IPv6(SRv6), EVPN L3VPN, EVPN VPWS, EVPN VPLS |
| VAS | NAT or CGN IPSec |
| Multicast | IGMP v1 or v2 or v3, IGMP Snooping, Static multicast routing, PIM-SM or SSM, MBGP, NG-MVPN |
| QoS | 3 level H-QoS, CAR |
| ISIS | 512 K |
| OSPF | 512 K |
| IPv4 RIB | 512 K |
| IPv6 RIB | 64 K |
| IPv4 FIB | 512 K |
| IPv6 FIB | 64 K |
| MAC | 256 K |
| ACL | 2048 |
| IPSec | 0.98 Gbps (1400 Bytes) |
| Cache | 45 ms |
| Clock | 1588 v2, Synchronous Ethernet clock |
| OAM | Telemetry, iFIT, BFD, NQA, RFC 2544, TWAMP |
| Operating Temperature | 23 ℉ to 113 ℉ (-5 ℃ to 45 ℃) |
| Dimensions (H x W x D) | 1.75 in x 17.40 in x 8.66 in (44.45 mm × 442 mm × 220 mm) (1U, Fixed box) |
