Overview

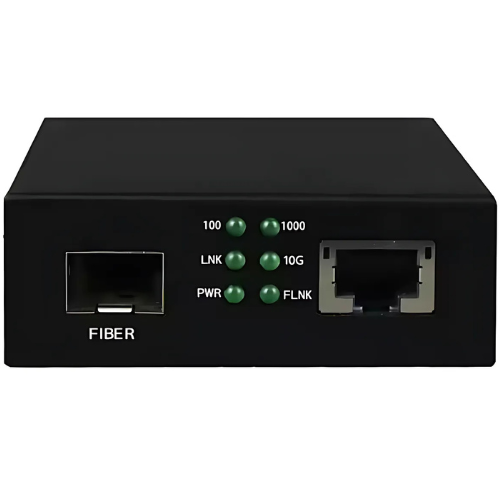

Specimen Track ethernet optical-electrical signal converter is a converter between optical signal and electrical signal, It can convert Users can choose different types of optical modules according to their needs. seamless connection between the optical and electrical signals of Ethernet. It can not only extend the transmission distance, Moreover, the data has good confidentiality, stable work, and easy maintenance.
Technical Specifications
| Network | Wired LAN |
| Power Supply | AC 180 V to 260 V; DC – 48 V; DC +24 V |
| Connector | FC or SC |
| Colour | Black |
| Working Humidity | 5 % to 95 % (no condensation) |
| Warranty | 3 yrs |
| Power Consumption | ≤ 10 W |
| Ethernet Interface (10 / 100 M) | |
| Interface Rate | 10 / 100 / 1000 / 10000 M, half / full duplex auto-negotiation |
| Cable Type | UTP-5 E or higher |
| Transmission Distance | 328 ft (100 m) |
| Connector | RJ 45 support Auto-MDIX |
| Multi-Mode Fiber | |
| Transmission Distance | 1.24 mi (2 Km), attenuation (3 dbm or km) |
| Wave Length | 850 nm |
| Transmitting Power | -12 dBm (Min) to 9 dBm (Max) |
| Receiver Sensitivity | -28 dBm (Min) |
| Link Budget | 16 dBm |
| Single-Mode Fiber | |
| Transmission Distance | 12.43 mi (20 Km), attenuation (0.35 dbm / km) (provide customized products for longer distance) |
| Wavelength | 1310 nm |
| Transmitting Power | -9 dBm (Min) to 5 dBm (Max) |
| Receiver Sensitivity | -27 dBm (Min) |
| Link Budget | 18 dBm |
| Working Environment | |
| Working Humidity | 0 % to 95 % (no condensation) |
| MTBF | ＞100,000 hr |
| Working Temperature | 14 °F to 122 °F (-10 °C to 50 °C) |
| Working Temperature | 50°F to 158°F (- 10 °C to 70 °C) / -40°F to 185°F (- 40 ℃ to + 85 ℃) (industrial type) |
| Storage Temperature | -40°F to 185° F (-40 °C to 85°C) |
| Size | 3.66 in x 2.76 in x 0.98 in (9.3 cm x 7 cm x 2.5 cm) (W X D X H) |
| Weight | 0.66 lb (300 g) |
