Overview

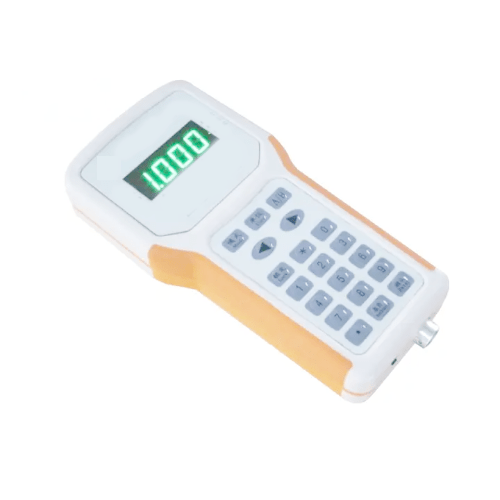

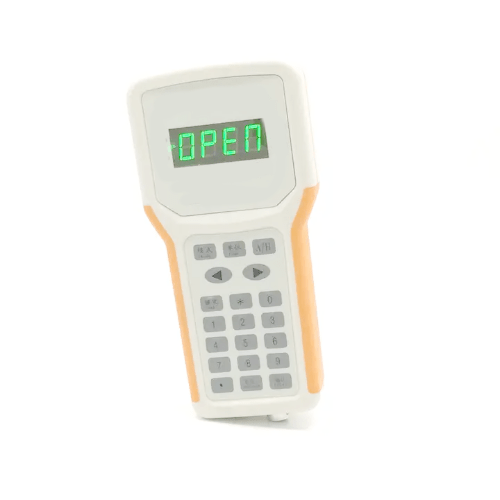

Four Probe Tester for Resistivity with 50 kΩ Range & USB Interface supports multi-purpose, cost-effective measuring method. It uses the four-probe measurement principle to test material resistivity or square resistance.
Technical Specifications
| Specification Model | M 3 |
| Resistance Range | 0.010 Ω to 50.00 kΩ |
| Resistivity Range | 0.010 Ω to 20.00 kΩ |
| Square Resistance Range | 0.050 Ω to 100.00 kΩ |
| Resolution | 0.001 Ω to 10 Ω |
| Test Mode | single electrical measurement |
| Error | 0.5% (standard samples) |
| Measurement Orientation | Axial and radial |
| Interface | USB |
| Range | 5 gears |
| Working Power | 220 V (110 V) ±10%, f = 50 Hz ±4%, Pw ≤20 W |
