Overview
Specimen Track Gigabit Enterprise Access Switch with 672 Gbps Switching Capacity is newly developed standard gigabit access switches that can provide full gigabit electrical or optical access and fixed gigabit uplink ports. The Cloud Engine series switches are a new generation of gigabit access switches, based on a unified VRP software platform, with enhanced three-layer features, simple operation and maintenance, intelligent iStack stacking, flexible Ethernet networking, mature IPv6 features, and other characteristics. They are widely used in various industries such as healthcare, retail, mining, and the Internet.
Technical Specifications
| Forwarding Performance | 166 Mpps |
| Switching Capacity | 672 Gbps or 6.72 Tbps |

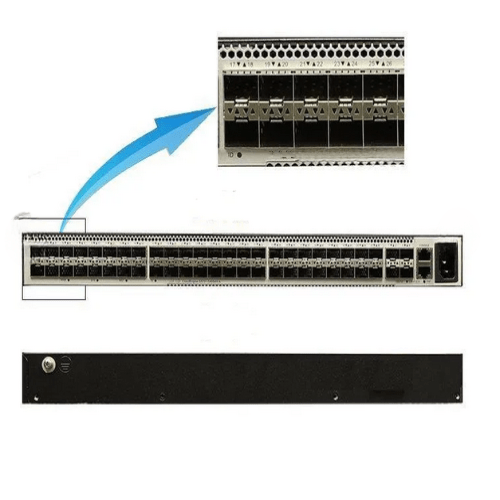

| Fixed Ports | 48 Gigabit SFPs, 4 10 Gigabit SFPs+ |
| Power consumption | 32 W |
| Max. voltage range | 90 V to 240 V AC, 50 Hz to 60 Hz |
| PoE+ | Unsupported |
| MAC Features | MAC address auto-learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses Interface-based MAC address learning limiting |
| VLAN Features | 4094 VLANs Guest VLAN, Voice VLAN GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports 1:1 and N:1 VLAN mapping |
| IP Routing | Static route, RIP v1 or v2, RIPng, OSPF, OSPFv3, ECMP, IS-IS, IS-ISv6, BGP, BGP4+ |
| Super Virtual Fabric (SVF) | Plug-and-play SVF clients Automatic software package and patch loading to SVF clients One-click and automatic delivery of service configurations Independent SVF client operation |
| Interoperability | VBST (compatible with PVST/PVST+/RPVST) LNP (similar to DTP) VCMP (similar to VTP) |
| Dimension | 17.40 in x 16.54 in x 1.72 in (442 mm x 420 mm x 43.6 mm) |
