Features
- All-aluminium alloy shell, good heat dissipation characteristics, gold oxide oxidation process, IP40 protection level
- Aluminium alloy industrial guide rail design, designed for harsh industrial environments
- Support 8 Gigabit ethernet ports and 8 Gigabit SFP optical ports
- Each ethernet port or optical port supports the standard ERPS ring network protocol, and the self-healing time is less than 20ms
- Support port bandwidth limitation, port flow control, broadcast storm suppression
- Support Web, CLI, Telnet management functions
- Power down alarm, loop alarm
- Provide Console debugging
- Can support POE (POE+) equipment
Technical Specifications
| Supported Protocol | IEEE802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak |
| Transmission Rate | 10 Mbps or 100 Mbps or 1000 Mbps |
| Communication Mode | Full-Duplex and Half-Duplex |
| Switch Capacity | 52 G |
| Maximum Frame Length | 10K |

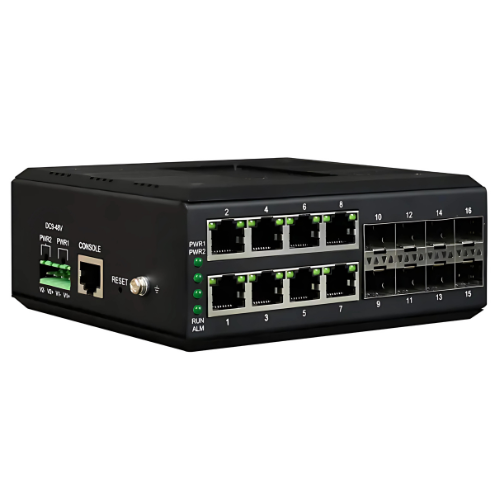

| Port Number | 8 x 10 or 100 or 1000M RJ45 Ethernet ports, 8 x 100M or 1000M SFP optical ports, and 1 x Console port |
| VLAN Address Table | 4K |
| MAC Address Table | 8K |
| Cache | 4Mbits |
| Function | LACP, QoS, SNMP, Stackable, VLAN Support |
| Backplane Bandwidth | 52Gbit |
| Filtering and Forwarding Rates | 10Mbps：14880pps |
| 100Mbps：148800pps | |
| 1000Mbps：1488000pps | |
| Humidity | 0% to 90% non to condensing |
| MTBF | > 100,000 hours |

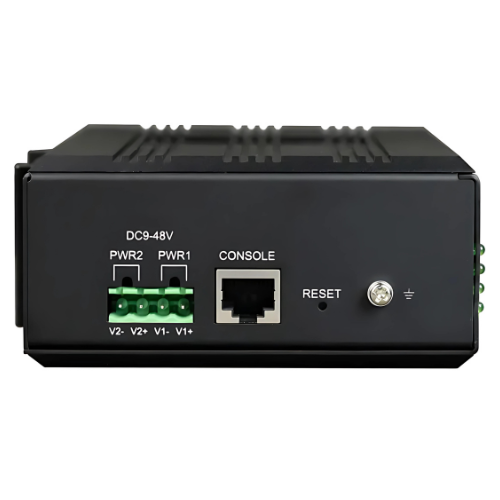

| Power Supply | DC 9 to 48 V or AC 9 to 48 V |
| Power Dissipation | Max 15W |
| Working Temperature | 104 ⁰F to 185 ⁰F (40 ⁰C to 85 ⁰C) |
| Product Size | 5.2362 in x 4.7244 in x 1.9685 in (13.3 cm x 12.0 cm x 5.0 cm) |
| Weight | 2.094 lbs. (0.95 kg) |
