Overview

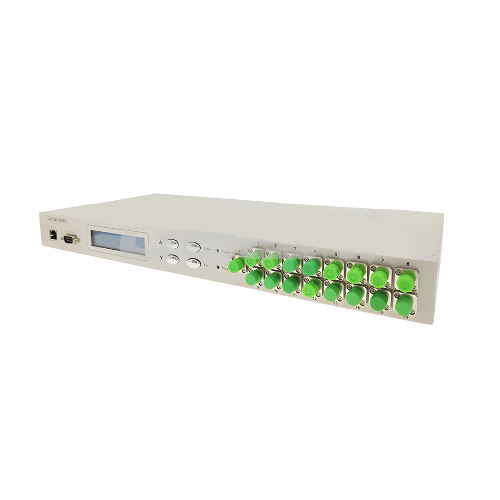

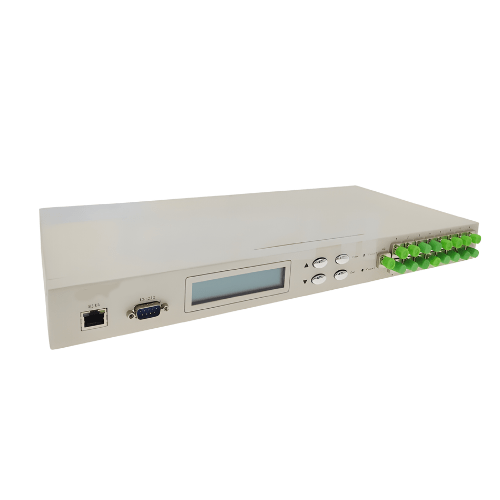

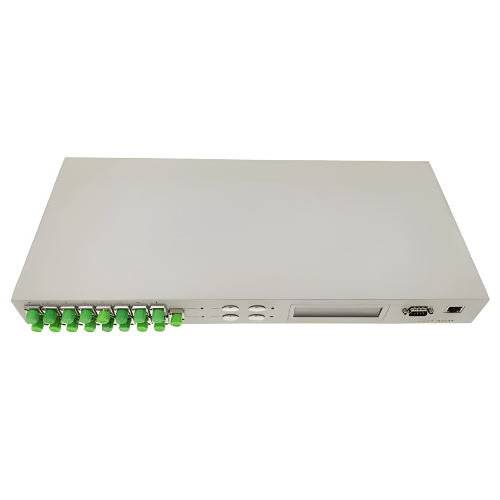

Specimen Track Gigabit Remote Fiber Converter with RS232 & RJ45 Control. In optical fiber transmission system, it is used for multi-channel fiber monitoring, multi light source or detector selection, and optical fiber path protection etc. Besides, it is also used in optical fiber test system for optical fiber and its component test, outdoor cable test and multi-spot optical sensors monitoring system.
Features
- Low insertion loss
- Fast switching
- Serial Net
- High Reliability
- High Stability
- LED display panel
- Visual display
- Transparent transmission signal
- RS232 Control & RJ45 Ethernet Remote Management
Technical Specifications
| Wavelength Range | 850 nm ± 40 nm or 1300 nm ± 40 nm, 1260 nm to 1650 nm |
| Operating Wavelength | 850 nm or 1300 nm, 1310 nm or 1550 nm |
| Insertion Loss | Typ. ≤ 0.8 dB, Max.≤ 1.5 dB |
| Return Loss | MM ≥ 35 dB, SM≥ 50 dB |
| Crosstalk | MM ≥ 50 dB, SM ≥ 70 dB |
| Polarization Dependent Loss | 0.05 dB |
| WDL | ≤ 0.25 dB |
| TDL | ≤ 0.25 dB |
| Repeatability | ≤ ± 0.02 dB |
| Power Supply | AC: 100 V to 240 V (50 Hz or 60 Hz) |
| Lifetime | ≥107 times |
| Switch Time | ≤ 10 ms |
| Optical Power | ≤ 500 mW |
| Operating Temperature | 14 °F to 140 °F (-10 ℃ to +60 ℃) |
| Storage Temperature | -40 °F to 185 °F (-40 ℃ to +85 ℃) |
| Dimension | 1U: 19 in x 9.06 in x 1.77 in (483 mm x 230 mm x 45 mm) |
