Overview

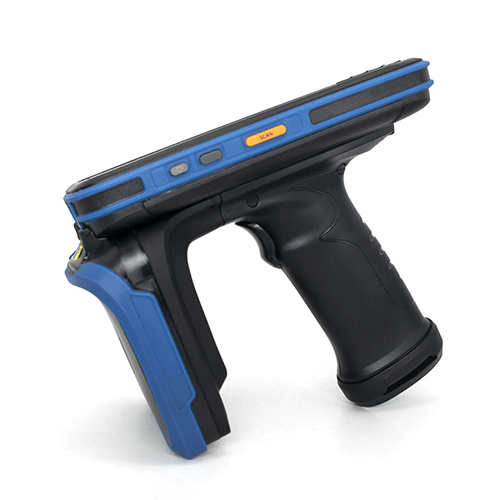

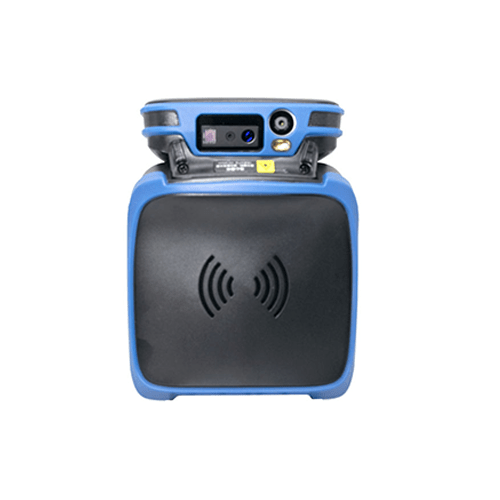

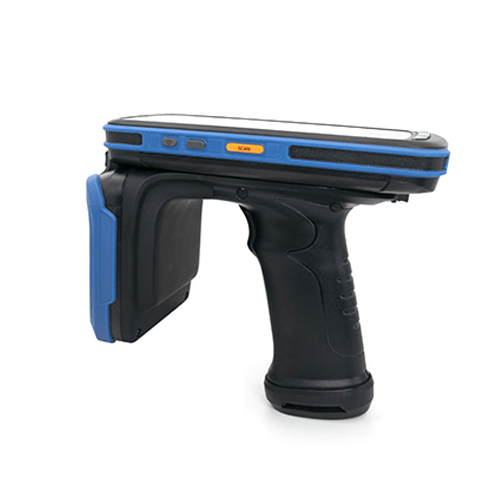

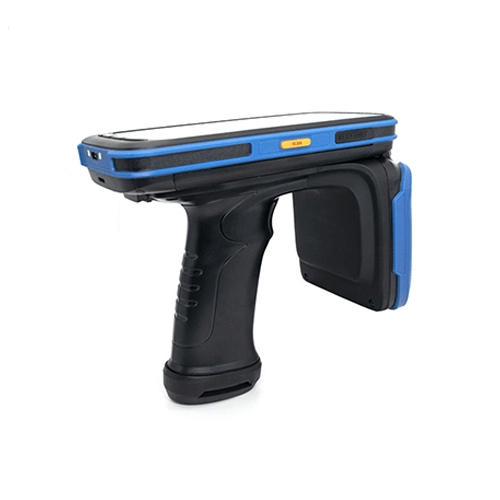

Specimen Track Handheld RFID Reader high-performance UHF smart handheld terminal that integrates powerful UHF RFID functions. Ultra-high frequency module, data collection is accurate and fast, and the reading range is wide, and the reading distance is more than 15 meters in an open outdoor environment. At the same time, it supports the optional bar code function, adopts an eight-core processor, and has multiple functions and complete configurations. In addition, it has a large-capacity battery up to 8000mAh, which is perfectly adapted to the needs of high-intensity data collection applications, and is widely used in asset management, clothing inventory, vehicle management, high-speed toll collection, warehouse management, financial management and other fields.
Technical Specifications
| Frequency | 13.56 MHZ |
| Protocol | ISO18000 6C |
| Bluetooth | Bluetooth 4.0 |
| CPU | Cortex-A53 1.3GHz Quad-core |
| Memory | RAM 4GB , ROM 64G |
| Expansion | Support up to 32GB MicroSD (TF) card |
| Drop Specification | Multiple 1.5m or 6ft drops (at least 20 times) to the concrete across the operating temperature range |
| Tumble Specification | 1000 x 0.5m or 6ft falls, still work normal, satisfy to IEC specification |
| ESD | ±8KV air discharge, ±4KV conductive discharge |
| Protection Level | Host IP65 per IEC sealing specification |
| Dimension | 6.47 inches x 3.15 inches x 0.96 inches (164.2 x 80.0 x 24.3) mm |
| Display | 5.2 in IPS FHD 1920 x 1080 |
| Humidity | 5 % to 95 % RH, non-condensing |
| Operating Temperature | -4° F to 122° F (-20 ℃ to 50 ℃) |
| Storage Temperature | -40°F to 158°F (-40 ℃ to70 ℃) |
| Weight | 23.08 ounces (654g) |
