Technical Specifications
| Work Temperature | -13 °F to 131 °F (-25 °C to 55 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Humidity | 0% to 95% (non-condensing) |

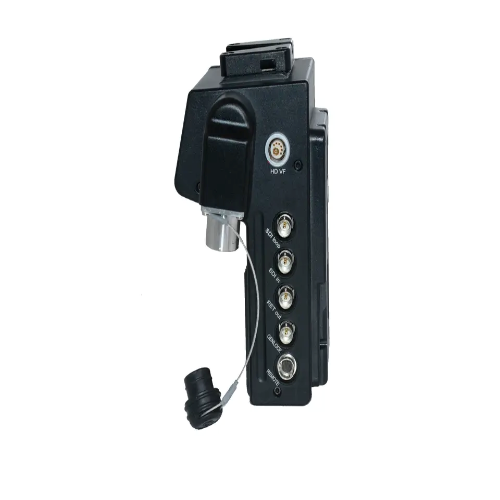

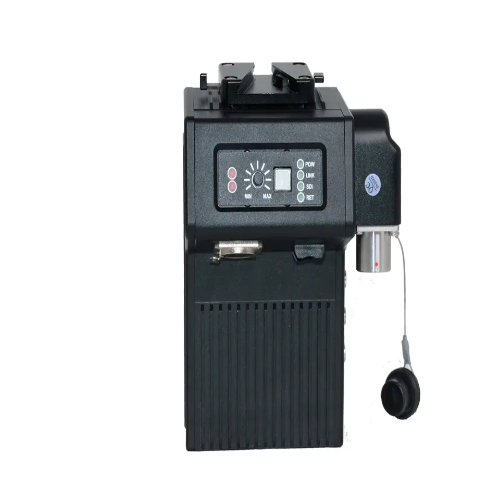

| Camera Optical Adaptor | |
| Input Power | DC 11 V to 19 V |
| Power Consumption | <8 W |
| Power Supply | No |

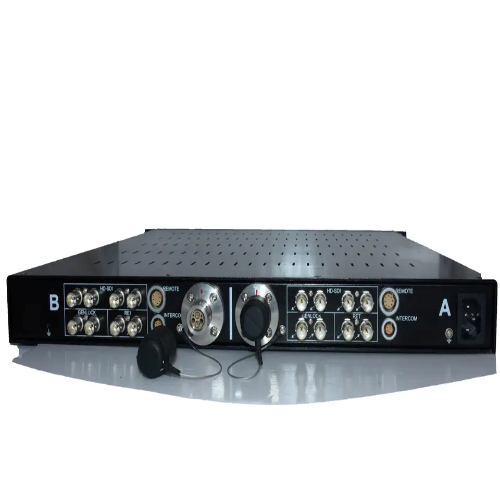

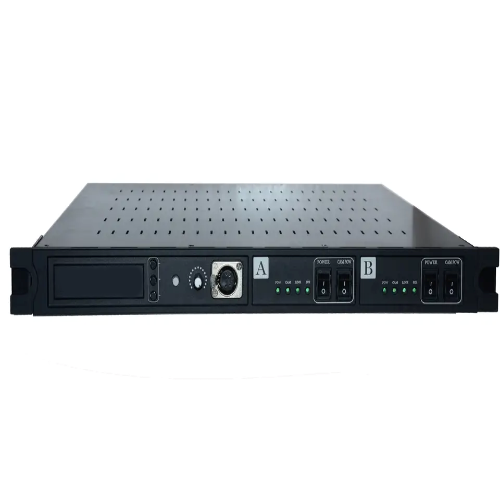

| Optical Base Station | |
| Input Power | AC 90 V to 240 V |
| Power Consumption | <20 W |
| Net Weight | 6.61 lb (3 kg) |
| Optical | |
| Wavelength | 1310 nm or 1550 nm or CWDM |
| Output Power | -6 dBm to 1 dBm |
| Rx sensitivity | <-18 dBm |
| Transmission Distance | SM fiber 6.21 mi (10 km) MM Fiber 0.18 mi (300 m) |
| Optical Connector | Dul LC or FC or ST or SC or Lemo or Neutrick(optional) |
| SDI input or output | |
| Signal Format | SMPTE 424 M, SMPTE 292 M, SMPTE 259 M |
| Data Rate | 270 Mbit/s to 1.48 Gbit/s to 3 Gbit/s |
| Cable Equalization | 0.18 mi (300 m) 270 Mbit/s, 0.09 mi (160 m) 1.5 Gbit/s, 100 M at 3 Gbit/s Automatic cable EQ (Belden 1694 A cable) |
| SDI interface | BNC 75 Ω |
| Intercom | |
| Camera Optical Adaptor | |
| Interface | 0.13 in (3.5 mm) headset jack, Data video Headset |
| Microphone | Mic inputs with mute and pre-amps |
| Headphone | With amplifier and volume up or down |
| Optical Base Station | |
| Interface | 5 pin XLR Male, be connected Data video Talkback System |
| Tally | |
| Camera Optica Adaptor | |
| Interface | 0.13 in (3.5 mm) headset jack, be connected Data video ext tally lamp |
| Output | Green or Red 2 colors |
| On: LED on | |
| Off: LED off | |
| Optic Base Station | |
| Interface | 5 pin XLR male |
| Input | Be Connected Data Video Talkback System |
| Remote | |
| Work mode | Full Duplex or half duplex |
| Data Rate | 10 Mbps or 100 Mbps (AUTO) |
| Connection terminal | RJ45 |
| Net Weight | 1.76 lb (800 g) |
| Appearance Size | 7.48 in × 4.33 in × 1.57 in (190 mm × 110 mm × 40 mm) |
