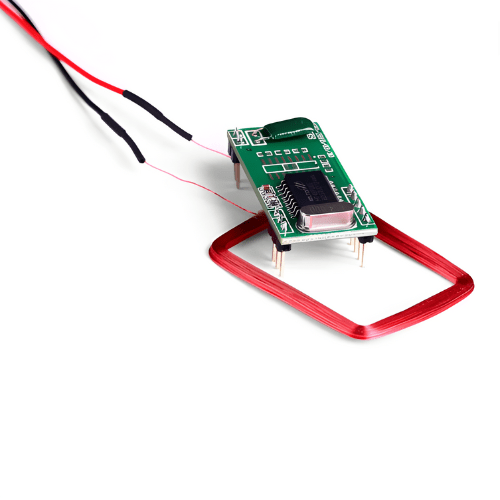

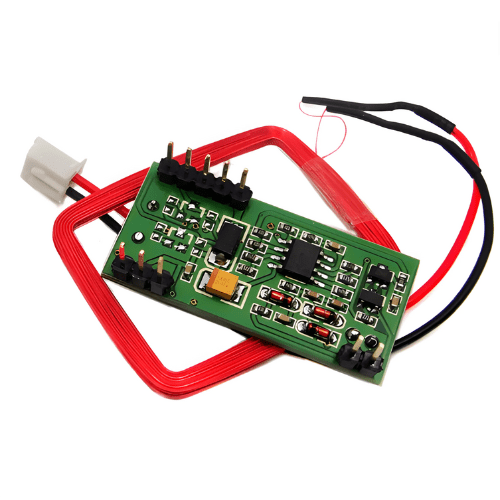

Name: HF RFID RS 232 Module with Multi-Standard and Wide Temp Range - Specimen Track -
SKU: STRHMOD-213

HF RFID RS 232 Module with Multi-Standard and Wide Temp Range – Specimen Track

HF RFID Reader RS 232 Module: 13.56 MHz, multi-standard, RS 232/RS 485/TTL, 38.5mm x 19mm x 9mm, >50mm range, stable performance.

SKU: STRHMOD-213 Category: Radio Frequency Identification (RFID)

Overview

This HF RFID Reader RS 232 Module has working distance >1.97 in, 14 ^oF to 158 ^oF operating temperature, and 1.52 in x 0.75 in x 0.35 in dimension.

Technical Specifications

Frequency	13.56 MHz
Read-Write Chip	MFRC 500, MFRC 400, MFRC 531, MFRC 632
Baud Rate	9600 bits per second to 115200 bits per second
Support Standard	ISO 14443-A, ISO 14443-B, ISO 15693
Sheathing Material	ABS
Power Supply/Current	DC 5 V or 3.3 V (±5%), < 70 mA
Interface	RS 232, RS 485, TTL
Working Distance	>1.97 in (>50 mm)
Operating Temperature	14 ^oF to 158 ^oF (-10 ^oC to 70 ^oC)
Storage Temperature	-4 ^oF to 176 ^oF (-20 ^oC to 80 ^oC)
Dimension	1.52 in x 0.75 in x 0.35 in (38.5 mm x 19 mm x 9mm)
