Overview
Specimen Track is an industrial grade high speed measurement LiDAR sensor position with a range of up to 180 m. It integrates compensation algorithms for outdoor strong light and rain, snow and fog environments internally, ensuring that it can still operate normally in strong light and rain. It has multiple measurement modes and parameters for customers to choose and configure independently to meet the ranging needs of different customers. The analog version supports 4 Ma to 20 Ma current output, which is suitable for industrial scenarios.
Features
- High frame rate, low power consumption and easy integration
- High frequency, multiple interfaces and long ranging
- IP 67 protection available in harsh conditions
- High performance and small volume
- Support customer custom parameters
Technical Specifications
| Ranging accuracy | +3.9 in (10 cm) <32.8 ft (< 10 m) 1% >32.8 ft (>10 m) |
| Output accuracy | 0.1 Ma |
| Distance resolution | 0.39 in (1 cm) |
| Frame rate | 1 Hz to 1000 Hz |
| Resistance to ambient light | 100 Klux |
| Protection level | IP 67 |
| Light source | LD |
| Center wavelength | 905 nm |
| Eye safety | Class 1 |
| Field of view angle | 0.5 |
| Supply voltage | 5 V to 24 V |
| Average current | <150 Ma 5 V <80 Ma 12 V <50 Ma 24 v |
| Power waste | <1 W |
| Peak current | 150 Ma |
| Communication interface | RS 485 RS 232 |
| Line length | 27.6 in (70 cm) |
| Shell material | Alufer |
| Working temperature | -13 °F to 140 °F (-25 °C to 60 °C) |
| Storage temperature | -40 °F to 185 °F (-40 °C to 85 °C) |

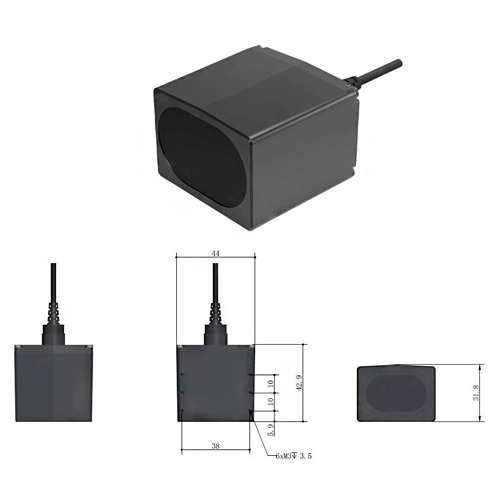

| Size | 1.7 in x 1.6 in x 1.3 in (44 mm x 43 mm x 32 mm) |
| Weight | 0.2 ±0.007 lb (92 ±3 g) |
