Overview

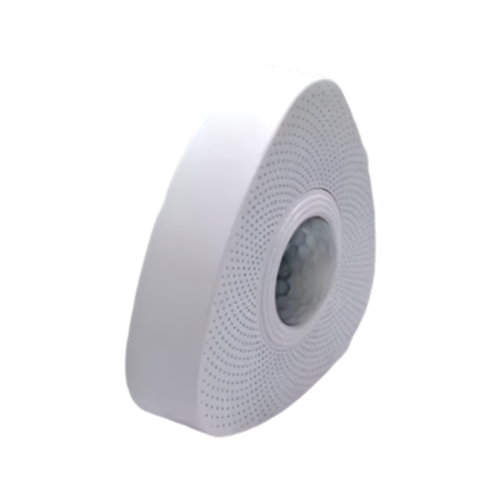

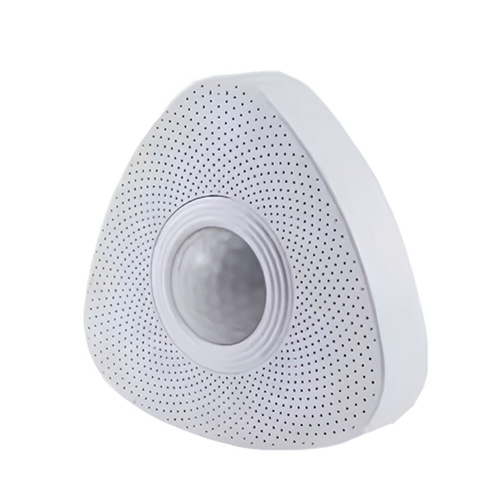

Specimen Track’s high accuracy indoor LoRaWAN wireless people counter is a smart people counting sensor, which can be used to count the number of people entering and leaving a place; when the number of people exceeds the limit, it will immediately pass the information to the cloud server through the built-in LoRaWAN module. Users can observe status information remotely. It is suitable for people statistics, over limit alarm and other functions.
Features
- PIR technology
- LoRaWAN wireless transmission
- Remote monitoring
- Low power consumption
- Battery powered or DC powered
Technical Specifications
| Shell Material | ABS |
| Detection Distance | 16 ft (5 m) |
| Detection Angle | 120° |
| Delay Time | 2.5 s |
| Wireless Module | NB-IoT or LoRaWAN or Sigfox |
| LoRaWAN Frequency | CN470, EU868, AS923, AU915, US915, KR920, IN865, RU868 |
| NB-IoT Bands | B3, B5, B8, B20, B28 |
| Sigfox Regions | RCZ1, RCZ2, RCZ3, RCZ4 |
| Battery Type | Rechargeable Lithium 1000 mAh at 3.7 V |
| Recharge Interface | Micro-USB 500 mA at 5 V |
| Operating Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Storage Temperature | -40 °F to 185 °F (-40 °C to 85 °C) |
| Net Weight | 3.81 oz (108 g) |
| Dimension | 4.33 in x 4.29 in x 0.98 in (110 mm × 109 mm × 25 mm) |
