Overview

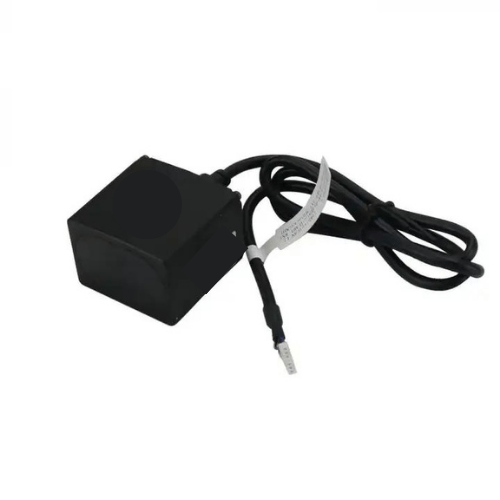

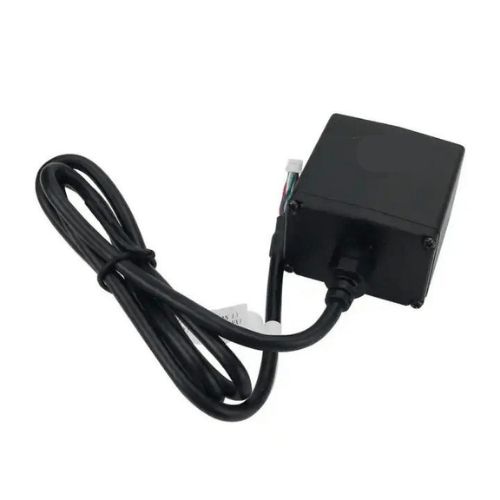

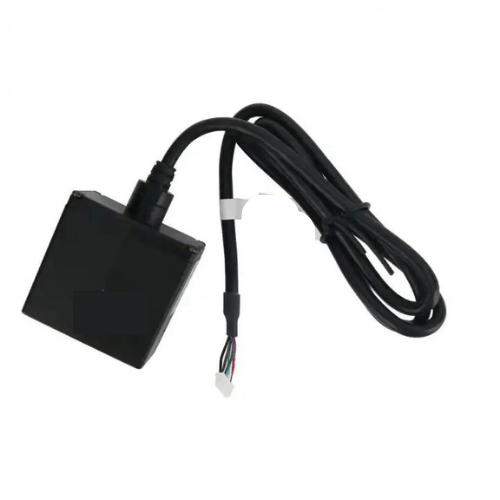

Specimen Track lidar range finder sensor module is the third-generation product and meanwhile, it upgrades more than ten key parameters and offers multiple expansion functions to meet the various demands in different application scenarios. Moreover, it is an industrial high-speed lidar with a range of up to 180 m. It includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their needs.
Technical Specifications
| Accuracy | 3.9 in (10 cm) |
| Distance resolution | 0.3 in (1 cm) |
| Frame Rate | 1 Hz to 1000 Hz |
| Ambient light immunity | 100 Klux |
| Central Wavelength | 905 nm |
| Supply Voltage | 5 V |
| Current | <180 mA |
| Power consumption | <0.9 W |
| Cable length | 27.5 in (70 cm) |
| Temperature | -40 ºF to 185 ºF (-40 ºC to 85 ºF) |
| Size | 1.7 in x 1.6 in x 1.2 in (44 mm x 43 mm x 32 mm) |
| Weight | 0.16 lb (77 gm) |
