Technical Specifications
| Type | Temperature and Humidity Sensor |
| Mounting Type | Temperature and Humidity Sensor |
| Use | Temperature and Humidity Sensing |
| Theory | Resistance Sensor |
| Output | Switching Transducer |
| Termination Style | Wire Leads |
| Connector | Molex |

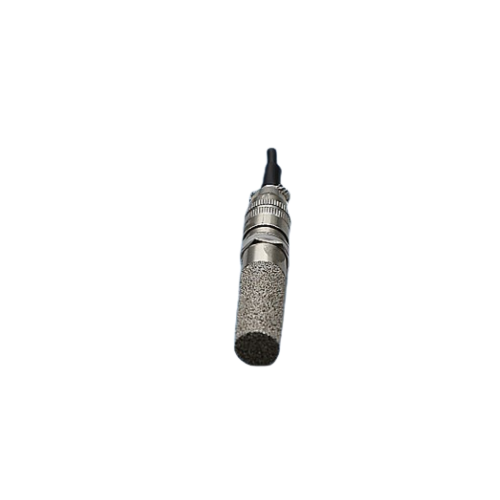

| Probe Material | Stainless Steel SS304 |
| Series | Temperature and Humidity Sensor |
| Resistance (R25 °C) | 100K Ohm |
| Accuracy | ±0.5 °C (±0.9 °F) |
| Additional Accuracy Options | ±1% or ±5% |
| B Value | 3950K ±1% |
| Current | 0.5 mA |
| Probe Types | Stainless Steel or PE or PVC |
| More Types | SHT10, SHT11, SHT15, SHT21, SHT25 etc. |
| Shell Material | Stainless Steel or Plastic |
| Cable Material | PVC or Silicone (customizable) |
| Terminal Type | Tinning or Stereo Plug (customizable) |
| Application | Agricultural Monitoring, Food Cold Chain, Fresh Air Systems, Industrial Monitoring |
| Humidity Range | 0 to 100% RH |
| Humidity Accuracy | ±3% RH or ±2% RH or ±1.5% RH (chip dependent) |
| Temperature Accuracy | ±0.54 °F (±0.3 °C) or ±0.36 °F (±0.2 °C) or ±0.18 °F (±0.1 °C) |
| Switching Temperature | -40 to 221 °F (-40 to 105 °C) |
| Operating Temperature Range | -40 to 221 °F (-40 to 105 °C) |
| Temperature Range (Sensor Element) | -40 to 1112 °F (-40 to 600 °C) |
