Name: High-Accuracy Static Torque Load Sensor - Specimen Track -
SKU: STRMFS-351

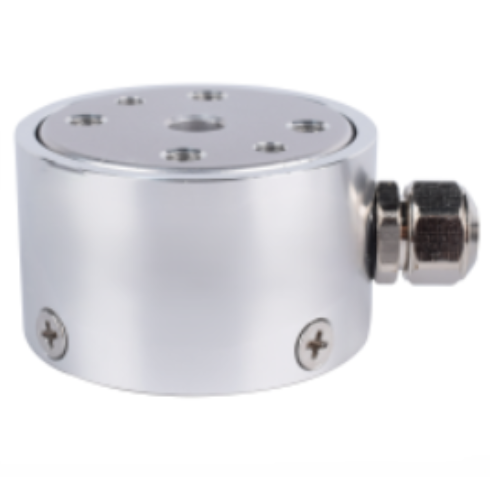

High-Accuracy Static Torque Load Sensor – Specimen Track

Static torque sensor 1–100 N·m with strain gauge output, high sensitivity, low creep, IP65-rated housing, CE and RoHS compliant, suitable for motor torque and bench testing.

Product successfully added to the Quote List

SKU: STRMFS-351 Category: Vibration Sensors

Technical Specifications

Specifications	Details
Capacity	1, 2, 3, 5, 10, 20, 30, 50, 100 N·m
Sensitivity	1.5 ± 10% mV/V
Zero Balance	± 0.02 mV/V
Creep	≤ 0.2% F.S.
Non-linearity	≤ 0.2% F.S.
Hysteresis	≤ 0.3% F.S.
Repeatability	≤ 0.1% F.S.
Input Impedance	350 ± 5Ω
Output Impedance	350 ± 5Ω
Temp. effect on sensitivity	0.1% F.S./10°C
Temp. effect on zero	0.1% F.S./10°C
Insulation Resistance	≥ 5000MΩ / 100V (DC)
Recommended Excitation	5–15V
Max. Excitation	20V
Compensated Temp. Range	–10°C to 60°C
Operating Temp. Range	–20°C to 80°C
Safe Overload	120% F.S.
Ultimate Overload	150% F.S.
Cable Size	φ3 × 3000 mm
Material	Stainless Steel / Aluminium Alloy, IP65, CE, ROHS
