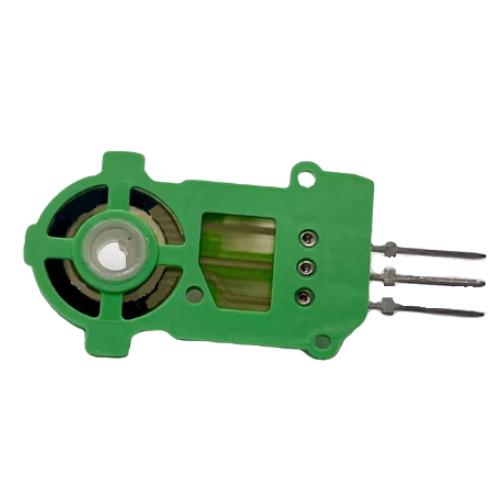

High Durability Rotary Potentiometer, 4.7KΩ, 0.25W, 500,000 Cycles Min - Specimen Track

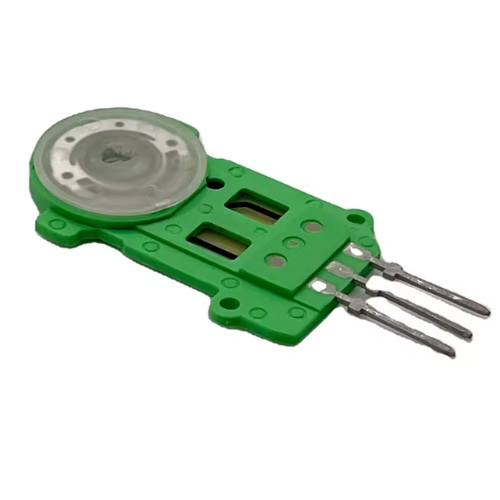

High Durability Rotary Potentiometer, 4.7KΩ, 0.25W, 500,000 Cycles Min - Specimen Track - Image 2

High Durability Rotary Potentiometer, 4.7KΩ, 0.25W, 500,000 Cycles Min – Specimen Track

High Durability Rotary Potentiometer, 500,000 Cycles Min. Throttle Encoder: 4.7KΩ±20%, 0.25W, DC5±0.5V, 150°±3° rotation.

SKU: STRPS-216 Category:

Technical Specifications

Total resistance4.7K ± 20 %
Rated power0.25 W
Line error± 1.5 %
Rated voltageDC 5 ± 0.5 V
Angle of effective rotation150° ± 3°
Rotational Torque0 gf.cm to 100 gf.cm
Rotational Life500,000 cycles Min
Materialpolycarbonate, ABS of non-crystalline polymer
