Overview

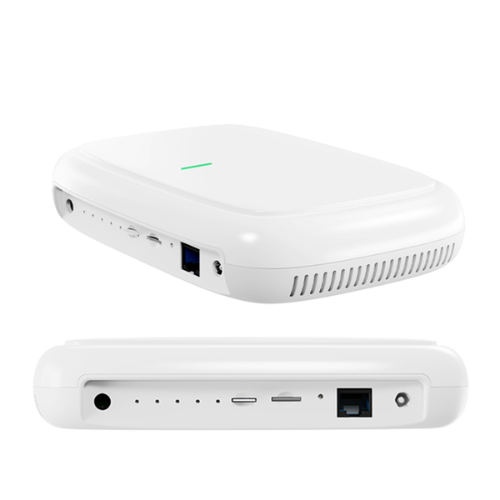

GAOTek High Performance BLE IIoT Gateway with Edge Computing and PoE Support offers a wide coverage area of up to 600 meters (open area), enabling it to swiftly scan a large number of tags and sensors. This makes it an ideal choice for logistics, warehouses, retail spaces, and exhibitions with high volumes of goods and foot traffic.This product supports multiple upload channels, including WiFi, Ethernet, and 4G, and can automatically switch between different network standards to ensure exceptional performance in complex settings. It seamlessly integrates with other BLE beacons, sensors, and system platforms for real-time environmental monitoring, helping to reduce manual inventory checks and other labor-intensive tasks.
Features
- Wide Coverage Area
- Multi-Channel Data Upload
- Scalable Data Throughput
- Accurate Data Scanning with Edge Computing
- High Performance Chipset
- Lower Power Consumption
- Increased Flexibility and Performant
- High Security
- Easy to Upgrade and Maintenance
Technical Specifications
| Specification | Details |
| Chipset | nRF52 series |
| Application | IIoT |
| Supplier Type | Manufacturer |
| Power Supply | DC 12V 1A or PoE (IEEE 802.3af) |
| Network Connection | WiFi or Ethernet or LTE Cat.1 |
| Firmware Update | OTA, LAN, TF Card |
| Bluetooth Frequency | 2.4 to 2.4835 GHz |
| Network Protocol | HTTP or MQTT or TCP |
| Wireless Encryption | WPA-PSK, WPA2-PSK, WPA-EAP, WPA2-EAP and TKIP |
| WiFi Wireless Standard | IEEE 802.11 b g n |
| Working Humidity | 5% to 95% RH, no condensation |
| Working Temperature | -4 °F to 122 °F (-20 °C to 50 °C) |
| Size (Dimension) | 5.12 in x 7.32 in x 1.42 in (130 mm x 186 mm x 36 mm) |
