Overview

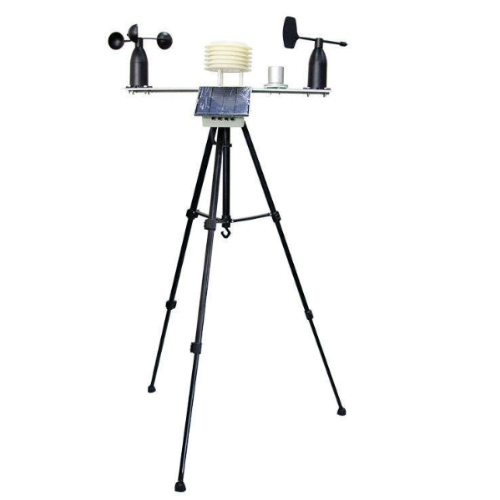

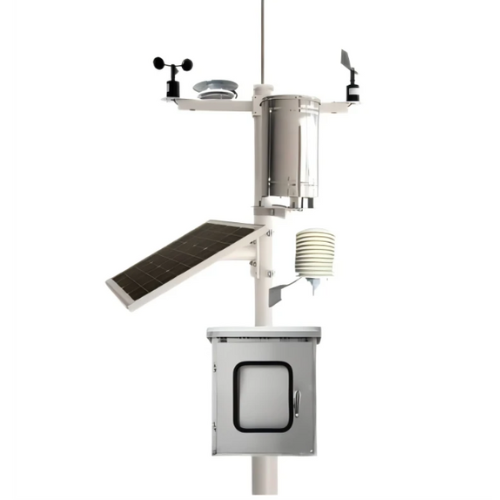

Specimen Track’s High-Precision All-Weather automatic monitoring station is an advanced system designed for comprehensive atmospheric and environmental monitoring. This product is used to measure a wide range of parameters, including atmospheric temperature, relative humidity, atmospheric pressure, wind speed and direction, solar radiation, light, rainfall, soil temperature, and humidity. It consists of multiple high-quality sensors, an LCD screen, a meteorological data collector, a durable chassis, and a robust support structure. This device is highly versatile and can be widely applied in meteorology, hydrology, agriculture, forestry, scientific research, and other fields, making it a reliable solution for accurate and long-term environmental data collection.
Features
- High accuracy
- Strong resistance to harsh environment
- Strong corrosion resistant ability
- Automatic storage and backup
- Convenient data download
- All-metal construction of bracket
- Solar power supply optional
- Free PC software
Technical Specifications
| Display | 7-inch color touch screen with backlight |
| Screen sleep | Support |
| Backlight adjustable | Support |
| Communication status | Support |
| Internal storage | Stores: every hour for 6 years; every 10 min for 1 year; every minute for 3 months |
| Sensor connection | Waterproof connector |
| Communication interface | RS485, Ethernet, GPRS/2G/3G/4G, WIFI |
| Optional connectivity | LoRa, Zigbee |
| Communication protocol | Modbus-RTU |
| Supply | Solar power, DC 12 V to 24 V, AC 100 V to 240 V |
| Measurement parameters | Max. 32 |
| Recording interval | 1 min to 240 min (settable) |
| U-disk download | Support |
| Relay output | Customized |
| Average consumption | < 3.5 W |
| CPU | ARM Cortex-A8 (720 MHz) |
| ESD | Class 4, ± 8 kV |
| Operating temperature | -40 °F to +167 °F (-40 ℃ to +75 ℃) |
| Shock resistance | 10 Hz to 25 Hz (X, Y, Z 2g at 30min) |
| Protection box | 15.7 in × 19.7 in × 7.9 in (400 mm × 500 mm × 200mm), supports solar power system |
| Ingress protection (IP) | IP65 (with protection box) |
| OEM/ODM | Available |
| MOQ | 1 PCS |
| Bracket size | 4.9 ft, 6.6 ft, 8.2 ft or 32.8 ft (1.5m, 2m, 2.5m or 10m) |
| Weight | 17.6 lbs (8 KG) |
