Overview

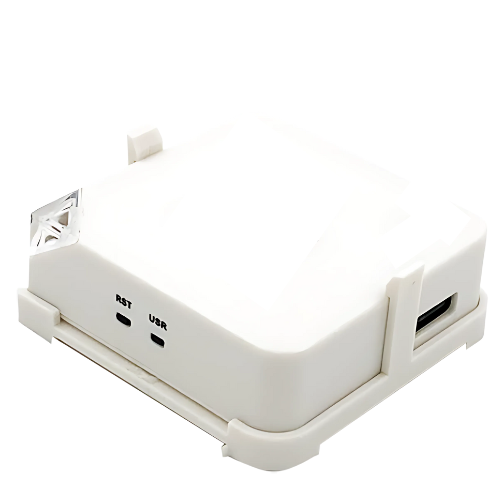

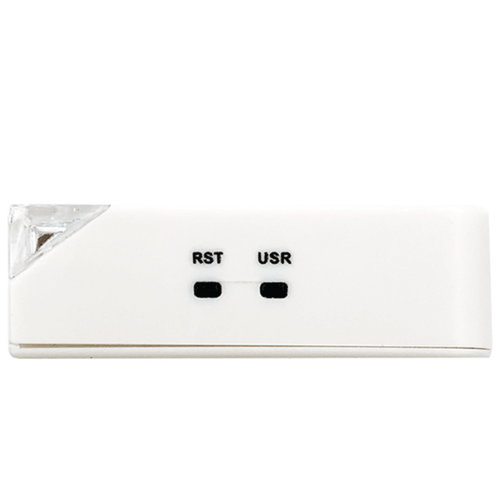

Specimen Track’s high-precision LoRaWAN wall-mounted indoor environmental sensor is a cost-effective solution for remote temperature and humidity monitoring. Utilizing LoRaWAN communication technology, it ensures long-range data transmission with minimal power consumption. Designed for accuracy and efficiency, this lightweight device is easy to install and configure, making it ideal for homes, industrial facilities, and other indoor environments. By wirelessly uploading recorded data to a cloud server, it enables real-time environmental monitoring, enhancing comfort and operational efficiency.
Features
- Indoor Environmental Monitor
- High sensitivity
- High precision
- Low power consumption
- High cost-effectiveness
- Small form factor
- LoRaWAN connectivity
Technical Specifications
| MCU | ESP32-C3FN4 |
| LoRa Chip | SX1262 |
| Wi-Fi | 802.11 b or g or n |
| LoRa Frequency | 863 MHz to 870 MHz, 902 MHz to 928 MHz, 470 MHz to 510 MHz |
| Push Interval | 2 minutes (min) |
| Supply Voltage | USB-Type C 5 V |
| Sensor Module | SHT3x and SGP30 |
| Operating Humidity | 90 % RH (non-condensing) |
| Storage Temperature | – 40 °F to 185 °F (- 40 °C to 85 °C) |
| Operating Temperature | – 4 °F to 122 °F (- 20 °C to 50 °C) |
| Size | 1.81 in x 1.81 in x 0.51 in (46 mm x 46 mm x 13 mm) |
