Features
- High-resolution touch screen
- Compact structure design
- Exceptional short distance performance
- Versatile data interfaces
Technical Specifications
| Use | FTTX |
| Network | None |
| Wavelength | 1310±20 / 1550±20 nm |

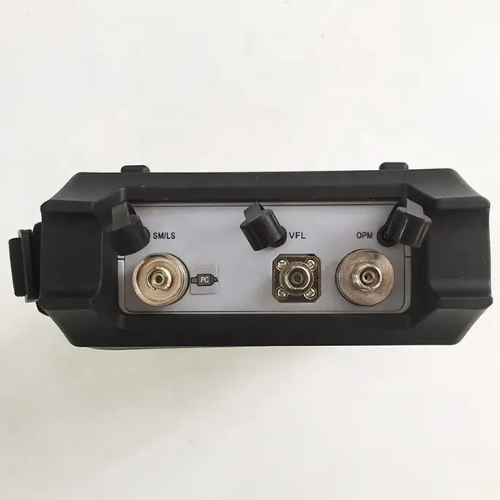

| Laser Adapter | FC/PC, SC/PC (option) |
| LCD Type | 5 in TFT colorized LCD |
| Measurement Time | User-defined (smart link), with real-time measurement function |
| Interface | USB |
| Power | AC input: 100 to 240V, 600mA, 50 Hz/60Hz DC output: 12.0V, 2A |
| Battery | Built-in rechargeable Li-ion battery; charging time < 4 hours; working time > 8 hours |
| Data Storage | 3000 items |
| Dynamic Range | 34 / 32 dB |
| Event Dead Zone | Less than 9.8 ft (< 3 m) |
| Attenuation Dead Zone | Less than 82 ft (< 25 m) |
| Distance Range | 0.003 to 99.4 miles (5 m to 160 km) |
| Pulse Width | 5 μs to 20 μs |
| Distance Accuracy | ± (3.3 ft + 0.001% x range + sampling resolution) |
| Attenuation Accuracy | ±0.05 dB/dB |
| Loss Limit | 0.01 dB |
| Loss Resolution | 0.001 dB |
| Sampling Resolution | 0.32 ft (0.1 m) |
| Sampling Points | 128000 |
| Relative Humidity | Less than 80% |
| Storage Temperature | -4 °F to 158 °F (-20 °C to 70 °C) |
| Operating Temperature | 32 °F to 104 °F (0 °C to 40 °C) |
| Dimension | 12.2 in x 9.1 in x 5.1 in (31 cm x 23 cm x 13 cm) |
| Weight | Less than 2.2 lbs (< 1 kg) |
