Overview

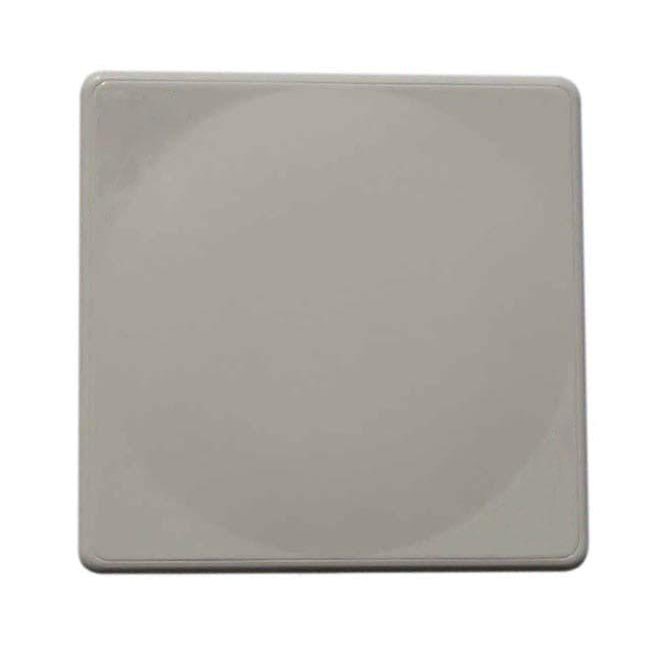

This powerful UHF integrated reader features best-in-class air interface performance and provides a rich application platform that addresses the needs of global deployment. Its high speed, extended read range makes the reader suitable for global transportation applications, such as Electronic Vehicle Registration (EVR), electronic tolling and parking control.
Key Features
- High speed and extended read range
- Fully supports ISO18000-6C, ISO18000-6B, iPx (Supertag), ISO10374, T21 and EAS Alarm protocols
- Provides Single Read Point Mode and Dual Read Point Mode
- Supports 10/100 Ethernet Port
- RoHS compliant
Technical Specifications
| Frequency | 902 MHz to 928 MHz |
| Protocols | Fully supports ISO18000-6C, ISO18000-6B, iPx (Supertag), ISO10374, T21 and EAS Alarm protocols. Additional protocols may be supported through firmware updates. |
| Operation Modes | Single Read Point Mode Dual Read Point Mode (with external antenna) |
| Communications | 10/100 Ethernet Port |
| RF Power | 10 mW to 2 W conducted (+33 dBm) |
| Input Power | 24 Vdc |
| Power Consumption | 13 W at idle; 40 W typical at 2 W; 46 W max at 2 W |
| Interfaces | RS232, Digital I/O, Ethernet LAN, also 1-RP-TNC (reverse polarity) for external antenna connection |
| Upgradeable Firmware | Yes |
| Operation Temperature | -40 °C to 55 °C (-40 °F to 131 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Relative Humidity | 100 %, condensing |
| Dimensions (L*W*D) | 45 cm * 45 cm * 10.5 cm |
| Weight | 6.8 kg |
| Regulatory | Compliant to RoHs, FCC part 15, part 90, IC RSS 137, IC RSS 210, Anatel (Cat. Ⅱ), CNC and IEC 60950 |
| Case Material | Aluminum cast, IP 67 rated. To be determined by environment requirements. |
