Overview

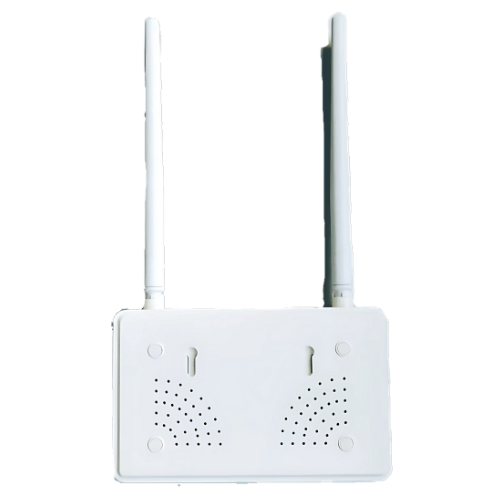

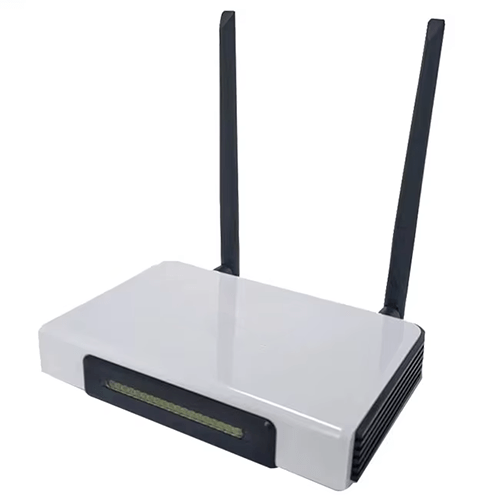

Specimen Track high-speed LoRaWAN home gateway with multi-channel support is an easy installation indoor gateway based on LoRaWAN protocol, embedded with Semtech’s high-performance multi-channel transceiver SX1308 and MTK platform.The Gateway could connect to the LoRaWAN server via an Ethernet network or Wi-Fi. The home GW includes 3 modes: AP, STA, and PPPoE as Router. Only one RJ45 port is provided but with a WAN/LAN switch automatically. The Home GW is targeted to be used in smart hotel buildings smart homes home door smart parking and as a supplement for the industrial outdoor gateway.
Features
- P27dBm max output power
- High sensitivity with-141dBm@300bps
- Smart building
- Indoor application
- Building automation
- Half duplex mode for LoRaWAN communication
- LoRaWAN uplink: 8 normal multi-SF channels (SF7 to SF12,125kHz), 1 single SF high speed data rate channel and 1 GFSK channel
- LoRaWAN downlink: 1 normal channel (125kHz/250kHz/500kHz LoRa configurable or GFSK)
- Communication data rate 292bps to 50kbps
- Support LoRaWAN Class A/C
- WIFI 2.4GHz, Compatible with WLAN11b/g/n
- APmode
- Station mode
- PPPoE mode to connect to network
- 1xLoRaWAN Antenna, 1xWIFIAntenna
- LoRaWAN antenna Gain: 0dBidefault
- WIFI antenna Gain: 5dBidefault
- 10/100M Ethernet, LAN/WAN switch automatically via oneRJ45
- Configurable via WIFI orLAN
- LED status for Power/WIFI/LoRaWAN/USB
- DC 12Vinput
- Indoor use
- Operating frequency bands (Option when order): * 434MHz, 470MHz/510MHz, 780MHz, 868MHz
Technical Specifications
| Max Output Power | 27 dBm |
| Sensitivity | -141 dBm @ 300 bps |
| Applications | Smart building, Indoor application, Building automation |
| Communication Mode | Half duplex mode for LoRaWAN communication |
| LoRaWAN Uplink | 8 normal multi-SF channels (SF7 to SF12, 125 kHz), 1 single-SF high-speed data rate channel, and 1 GFSK channel |
| LoRaWAN Downlink | 1 normal channel (125 kHz / 250 kHz / 500 kHz LoRa configurable or GFSK) |
| Data Rate | 292 bps to 50 kbps |
| LoRaWAN Support | Class A / C |
| Wi-Fi | 2.4 GHz, compatible with WLAN 11b/g/n |
| Wi-Fi Modes | AP mode, Station mode, PPPoE mode |
| Antennas | 1 x LoRaWAN Antenna (Gain: 0 dBi default), 1 x Wi-Fi Antenna (Gain: 5 dBi default) |
| Ethernet | 10/100M Ethernet, LAN/WAN switch automatically via one RJ45 |
| Configuration | Configurable via Wi-Fi or LAN |
| LED Status Indicators | Power, Wi-Fi, LoRaWAN, USB |
| Power Input | DC 12V |
| Usage | Indoor |
| Operating Frequency Bands | 434 MHz, 470 MHz / 510 MHz, 780 MHz, 868 MHz (options when ordering) |
| Kernel | ARM Cortex-A53 |
| Dominant Frequency | 1.2 GHz |
| Color | White |
| Material | Nylon |
| Weight | 74.1 oz (2100 g) |
