Technical Specifications
| FLASH | 16 MB (Extendable to 64MB) |
| SDRAM | 128 MB |

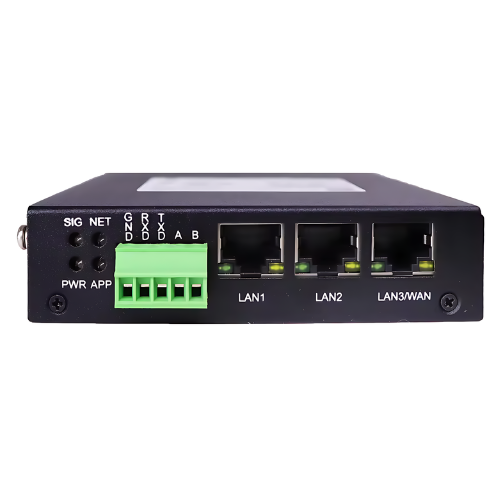

| Serial | 1 RS232 and 1 RS485, 15KV ESD protection Serial port 5 PIN industrial terminal, 3.5 mm pitch Data bits 5, 6 ,7, 8 Stop bits 1, 1.5(optional), 2Parity none, even, odd, space, mark Baud rate 110~230400 bps Large serial port data cache 10MB |
| WAN/LAN | 1 10 or 100Mbps WAN(RJ45,can configurable as LAN) port, auto MDI or MDIX, 1.5KV magnetic isolation protection |
| LAN | 2 10 or 100Mbps Ethernet ports(RJ45), auto MDI or MDIX, 1.5 KV magnetic isolation protection |
| Antenna | Cellular or GPS Standard SMA female interface, 50 ohm WIFI Standard SMA male interface, 50 ohm |
| SIM/UIM | Standard 3V or 1.8 V user card interface, 15 KV ESD protection |
| Power | 2 PIN industrial terminal, 3.81 mm pitch, reverse voltage and over voltage protection |
| Reset | Press this key for 8 seconds to restore the Router to its original factory default settings |
| Indicator | PWR、SIG、NET、APP 、Link (RJ45) |
| Wireless Network | GSM or GPRS or EDGE 850 or 900 or 1800 or 1900MHz CDMA 800 or 1900MHz WCDMA or HSUPA or HSPA+ 850 or 900 or 1900 or 2100MHz CDMA2000 1x or EVDO Rev. A 800 or 1900MHz TD SCDMA 1880 to 1920 or 2010 to 2025MHz(A or F) TDD LTE Band 38 or 39 40 41& Band 61 62 (Private Network) FDD LTE Band1 or 2 or 3 or 4 or 5 or 7 or 8 or 12 or 13 or 17 or 18 or 1 9 or 20 or 21 or 25 or 26 or 28 or 66 5G Sub 6 n2 or n5 or n7 or n12 or n14 or n38 or n41 or n66 or n71 or n785G UL MIMO n77 or 78 or 79 or 41 |
| PPP Protocol | Support PPP Protocol |
| PPP Heartbeat | Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial up link. |
| Network Authentication | Support CHAP or PAP Authentication |
| TCP Heartbeat | Monitor the server connection |
| Standard | IEEE802.11b or g or n |
| Bandwidth | IEEE802.11b or g 54Mbps (max) IEEE802.11n 150Mbps (max) |
| Security | WEP, WPA, WPA2, etc. WPS (optional) |
| Power range | DC 5 to 35V, Recommended 12VDC or 1.5A |
| Communication Current | 500 mA ( at 12VDC) |
| tandby Current | < 250 mA（at 12VDC） |
| Installation | Mount Kit or DIN Rail 35mm (optional) |
| Dimensions | 4.21 in x 3.86 in x 0.94 inb(107 mm x 98 mm x 24 mm) |
| Weight | 12.35 oz (350g) |
| Operating Temperature | -31 to +167℉ (-35 to +75ºC) |
| Storage Temperature | -40 to +185℉ (-40 to +85ºC) |
