Technical Specifications
| Chipset | Raspberry Pi |
| Application | Industrial Applications |
| CPU | Broadcom BCm2711, Quad-core A72 (ARM v8) @ 1.5 GHz |
| Memory | 2 GB (2 GB or 4 GB or 8 GB optional) LPDDR4 |
| Flash | 8 GB (16 GB or 32 GB optional) eMMC |
| Operating System | Raspbian or ElastOS |
| Interfaces | GbE, DI, DO, RS232, RS485 |
| Network or Cellular | 4G LTE, 3G, 2G, NB-IoT CAT-M1 |
| Wi-Fi | Dual-band 2.4 GHz or 5 GHz 802.11 b/g/n |
| GPS | Cellular Module built-in supported (optional) |
| LoRaWAN | Supported (optional) |
| Ethernet | 1 × Gigabit Ethernet, (1 WAN or 1 LAN Configurable) |
| Bluetooth | Supported |
| SIM | 1.8 V or 3 V; drawer-type Nano card holder × 1 15KV ESD Protection |

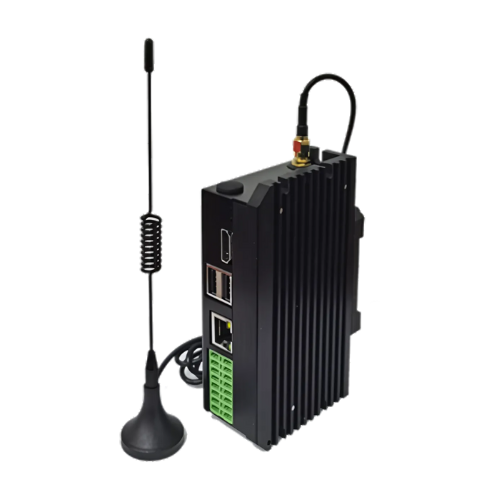

| Antenna | 4G: inside 1 × SMA Wi-Fi or Bluetooth: inside 1 × SMA |
| Industrial Serial Port | 1 × RS232, 1 × RS485 RS232 signal: TXD, RXD, GND; RS485 signal: A, B, GND; ESD Protection: 15KV |
| I/O | 2-channel digital input DI 2-channel digital or pulse output DO |
| USB | 2 × USB2.0 for peripherals 1 × USB-C for Power supply and Console |
| HDMI | 1 × HDMI2.0 (up to 4kp60 video & audio output) |
| Additional drive | 1 × M.2 socket with 2280 NVME SSD support Standalone Watchdog timer |
| Power Supply | Wide Range Voltages 9 V to 36 V DC/1 A |
| Power Terminal | Unpluggable industrial terminal connection |
| Power Consumption | Less than 10 W (system) |
| (Optional) Real-time clock (RTC) | Embedded RTC, power supply with a supercapacitor |
| Protection | IP30 |

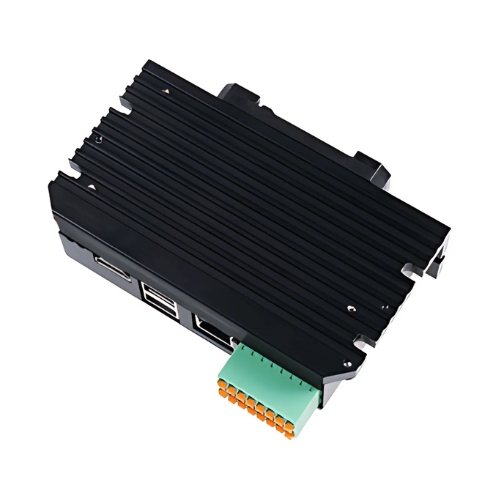

| Housing | Aluminum Heatsink |
| Cooling | Fanless cooling |
| Installation | DIN-Rail, wall mounting |
| Ambient Humidity | 5% to 95% (non-condensing) |
| Operating Temperature | -13 °F to 158 °F (-25 °C to 70 °C) (industrial grade) |
| Storage Temperature | -22 °F to 167 °F (-30 °C to 75 °C) |
| Dimensions | 4.88 in × 2.99 in × 1.37 in (12.4 cm × 7.6 cm × 3.5 cm) |
