Overview

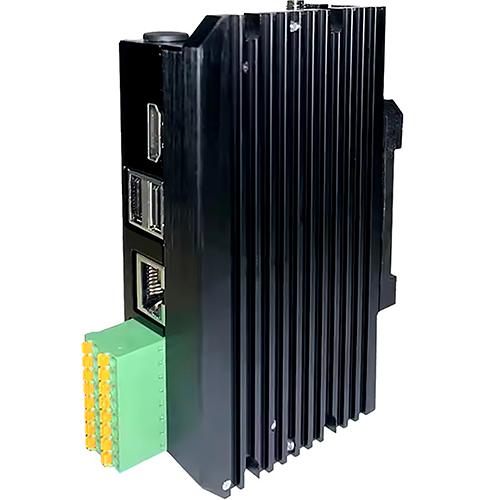

Specimen Track industrial IoT gateway 4GB RAM, 16GB eMMC, modbus, LoRa & Wi-Fi integration can be used to connect the field networks with cloud or IoT applications. Products are designed from the ground up to meet the challenges of harsh environments at competitive prices, ideal for small business or small order with scale multi-level demands, fitted with the Raspberry Pi CM4. It is designed for easy setup and quick deployment for typical industrial applications, such as status monitoring, facility management, digital signage and remote control of public utilities. Furthermore, it is a user-friendly gateway solution with 4 cores ARM Cortex A72 and most industry protocols can save on total deployment costs including electrical power cabling cost and help reduce the product’s deployment time. Its ultra-lightweight and compact design is the answer for applications in space-constricting environments, which ensures it can operate reliably in a variety of extreme environments including in-vehicle applications.
This version of EdgeBox RPI4 is equipped with 4GB RAM, 16GB eMMC and on-chip Wi-Fi. This Raspberry Pi CM4-powered IoT edge device serves as a reliable and scalable Industrial IoT gateway, supporting Modbus, LoRa and Wi-Fi, and etc. Seamlessly integrate with various IoT protocols and harness the power of edge computing for efficient data processing and communication.
Features
- All-in-one IIoT Edge Gateway: More than just a PLC, PAC, also an IoT edge Gateway, edge computing controller and Industry PC.
- Powerful and Flexible Processors: Powered by Raspberry Pi CM4, equipped up to 8GB RAM and 32GB eMMC
- Multiple Communication Capabilities: Support multiple industrial iot protocols and standards on phoenix connector and a RJ45 Gigabit Ethernet; Carry full-featured wireless interconnectivity with both cecullar and LoRa, supported by AWS, Azure cloud services
- Rugged Industrial-grade Hardware Design: Integrated thermal management with full Aluminum heatsink enclosure, supporting 35mm DIN rail and wall mounting
- Supported with Rich Industrial Software Ecosystem: Support rich industrial platforms and also fleet management, including Codesys, N3uron, balena, Node Red, Ignition and etc.
Technical Specifications
| CPU | Broadcom BCM2711, Quad core Cortex-A72 64-bit SoC at 1.5 GHz |
| Memory | Options for 1 GB, 2 GB, 4 GB or 8 GB LPDDR4-3200 SD RAM |
| Storage | On board emmc 8 GB to 32 GB, M.2 socket for NVME SSD up to 2 TB |
| Wireless | 2.4 GHz, 5.0 GHz IEEE 802.11 b or g or n or ac, Bluetooth 5.0, BLE. |
| Video Interface | HDMI 2.0a (up to 4 kp 60 supported) |
| Interfaces | 1 × RJ45 ethernet port support 10 or 100M or 1000M, 2 x USB 2.0 Port, 1 x HDMI 2.0a, 2× DI, 2x DO, 1 x isolated RS485, 1 x RS232, 1 x mini-PCIe socket with sim card support, 1 x M.2 socket with 2242 NVME SSD card support, dual bands 802.11ac Wi-Fi (optional), Wide power supply support 10.8-36V DC |
| Extra Features | built in UPS with supercap for safe shutdown(optional) RTC; Stand alone Watch dog timer, Atecc608a(optional) |
| Graphics And Multimedia | 3D GPU: Supports OpenGL ES 2.0, 1.1; H.264,MPEG4 decode(1080p30); H.264 encode(1080p30) |
| Optional | Encryp : Encryption chip ATECC608A Wi-Fi: Dual-Band Frequency 2.4GHz or 5GHz WiFi UPS: suppercap for safe shutdown |
| Operating Temperature | – 4 °F to 140 °F (- 20 °C to 60 °C) |
| Dimensions | 4.88 in x 2.67 in x 1.37 in (12.4 x 6.8 x 3.5 cm) |
