Features
- Cortex-A7 CPU
- LoRa Protocol
- Wi-Fi Enabled
- 4G LTE Support
- RS485 Interface
- RS232 Ports
Technical Specifications
| CPU | Cortex-A7 + MCU, up to 1.2 GHz |
| NPU | 0.5 TOPS, supports INT4 or INT8 or INT16 |
| RAM | 128 MB or 256 MB DDR3L (Optional) |
| ROM | eMMC 8 GB (up to 256 GB) |
| Wireless Protocol | 4G LTE or LoRa or WiFi BT (Optional) |
| Power Supply | DC 9 to 36 V |
| Serial Ports | 1 x RS-232 / 1 x RS-485 (Isolation) |
| Operating System | Linux 5.10, Ubuntu Linux 22.04 |
| Carrier Frequency (Hz) | 410M to 525M / 850M to 931M |
| Data Type | 126mW, LoRa spread spectrum wireless serial port module. Data encryption, fixed-point transmission. |
| Power Parameters | Standard Power: DC 12V / 1.5 / 2A Input Voltage: 9 V DC to 36 V DC Working Mode: 5W Peak Power: <10W |
| Indicators | LED indicators: Power x 1 |
| Reliability | RTC Battery: External RTC battery (CR1220 3V) Automatic Reboot: Built-in WDT (Watchdog Timer) |
| Physical Characteristics
|

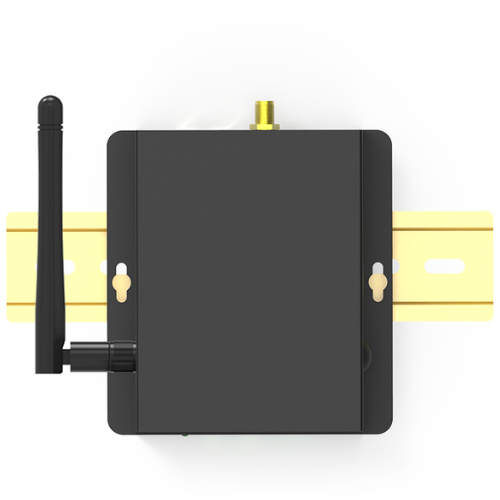

Housing: Metal Protection Level: IP30 Installation: DIN-rail mounting, Wall mounting |
| Package Contents | Device, Antenna, DIN-rail kit, Installation Kit, Power Adapter (optional) 1 x EC1106G2 IoT Gateway (selectable: WiFi/BT/4G/LoRa/GPS) |
| Humidity | Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature | -4 °F to 158 °F (-20 ℃ to 70 ℃) |
| Size | 3.70 in x 2.75 in x 1.29 in (9.4 cm x 7 cm x 3.3 cm) |
